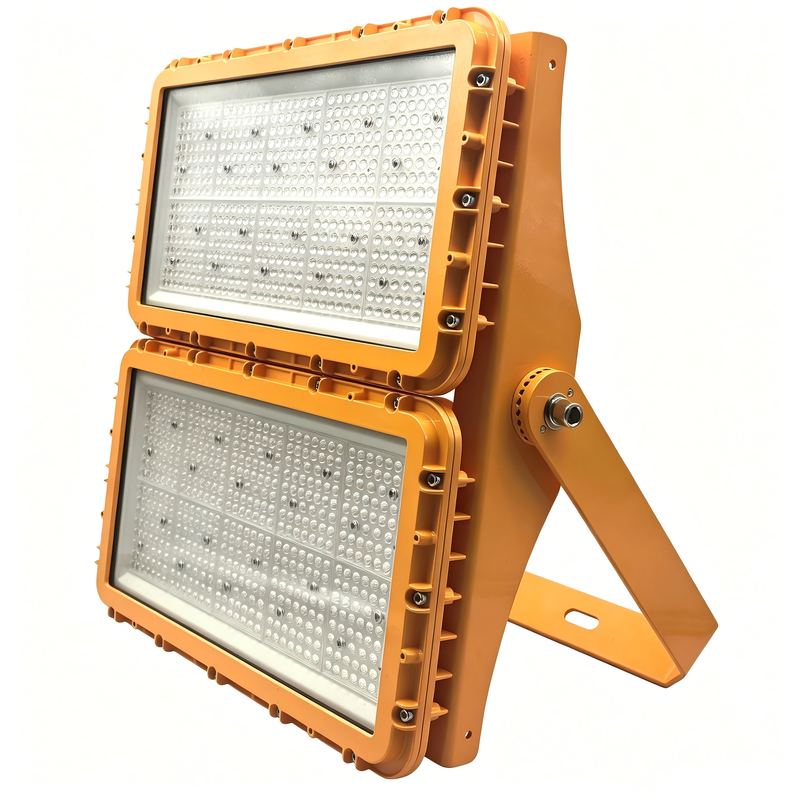

300W LED Explosion Proof Flood Light IK10 Tunnel Mining Underground Heavy-Duty Impact IP66 Die-Cast Aluminum ADC12
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | ECER |
| Certification: | ATEX II 2G Ex d IIC T6 Gb, CE, ISO 9001:2015 |
| Model Number: | EPFL-300W-TNL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box package+ bubble or as customized |
| Delivery Time: | 10-15 days or confirm |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Power: | 300W | Luminous Flux: | 36000lm |
|---|---|---|---|
| Efficacy: | 120lm/W | Beam Angle: | 90° |
| Color Temperature: | 4000K | LED Chip: | Bridgelux SMD 3030 |
| IP Rating: | IP66 | Housing Material: | Die-Cast Aluminum ADC12 With IK10 Reinforcement |
| Operating Temperature: | -20°C To +50°C | Certification: | ATEX II 2G Ex D IIC T6 Gb |
| Lifespan: | ≥50,000 Hours L70 | Warranty: | 5 Years |
| Highlight: | 300W explosion proof LED flood light,IK10 impact resistant tunnel light,IP66 die-cast aluminum mining light |
||
Product Description
300W LED Explosion Proof Flood Light - IK10 Tunnel Mining Underground Heavy-Duty Impact
The EPFL-300W-TNL is a 300W LED explosion proof flood light delivering 36000lm luminous flux with 120lm/W efficiency. ATEX II 2G Ex d IIC T6 Gb certified with IP66 protection, this purpose-engineered floodlight features Die-Cast Aluminum ADC12 with IK10 Reinforcement for demanding classified area applications.
Key Features
- 300W High-Efficiency Output - 36000lm total luminous flux at 120lm/W, replacing traditional HID fixtures with superior energy performance
- ATEX II 2G Ex d IIC T6 Gb Certified - Full explosion-proof certification for Zone 1/Zone 2 gas and Zone 21/Zone 22 dust hazardous atmospheres
- IK10 Impact Resistance - Reinforced aluminum housing with 8mm tempered glass and protective grille, certified for tunnel and mining environments with falling debris risk
- IP66 Protection - Fully sealed against environmental ingress for reliable outdoor and industrial operation
- High Transmittance Tempered Glass - Safety glass lens with excellent light transmission and impact resistance
- Die-Cast Fin Heat Dissipation - Advanced thermal management ensuring consistent 300W performance and extended LED lifespan
- 180° Adjustable Bracket - Flexible angle adjustment for precise positioning in any installation scenario
- Universal Voltage Input - Compatible with global power distribution systems for simplified international deployment
- 5-Year Warranty - Backed by ≥50,000 hours L70 rated lifespan and factory quality testing
Applications
Engineered for road tunnels, mining galleries, underground storage caverns, metro stations, and confined hazardous spaces:
- Oil and gas exploration, production and refining facilities
- Petrochemical processing and chemical manufacturing plants
- Offshore platforms, FPSOs and marine terminals
- Pharmaceutical and food processing classified zones
- Mining, tunneling and underground hazardous spaces
- Emergency and safety-critical lighting applications
Technical Specifications
| Model Number | EPFL-300W-TNL |
|---|---|
| Power Consumption | 300W |
| Luminous Flux | 36000lm |
| Efficacy | 120lm/W |
| Beam Angle | 90° |
| Color Temperature | 4000K |
| LED Chip | Bridgelux SMD 3030 |
| IP Rating | IP66 |
| Housing Material | Die-Cast Aluminum ADC12 with IK10 Reinforcement |
| Operating Temperature | -20°C to +50°C |
| Certification | ATEX II 2G Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
Each unit undergoes 100% factory testing of the explosion-proof enclosure integrity and photometric performance verification. Our 5-year warranty reflects confidence in the long-term reliability of the EPFL-300W-TNL design.
For bulk orders, OEM customization, or technical inquiries, please contact our sales team.
