300W LED Explosion Proof Flood Light IECEx Drilling Rig Offshore Platform IP67 Marine IP67 Die-Cast Aluminum ADC12
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | ECER |
| Certification: | IECEx Ex d IIC T6 Gb, ISO 9001:2015 |
| Model Number: | EPFL-300W-DRL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box package+ bubble or as customized |
| Delivery Time: | 10-15 days or confirm |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Power: | 300W | Luminous Flux: | 39000lm |
|---|---|---|---|
| Efficacy: | 130lm/W | Beam Angle: | 90° |
| Color Temperature: | 5000K | LED Chip: | Bridgelux SMD 3030 |
| IP Rating: | IP67 | Housing Material: | Die-Cast Aluminum ADC12 With Marine-Grade Coating |
| Operating Temperature: | -40°C To +60°C | Certification: | IECEx Ex D IIC T6 Gb |
| Lifespan: | ≥50,000 Hours L70 | Warranty: | 5 Years |
| Highlight: | 300W LED explosion proof flood light,IECEx drilling rig offshore platform light,IP67 marine die-cast aluminum flood light |
||
Product Description
300W LED Explosion Proof Flood Light - IECEx Drilling Rig Offshore Platform IP67 Marine
The EPFL-300W-DRL is a 300W LED explosion proof flood light delivering 39000lm luminous flux with 130lm/W efficiency. IECEx Ex d IIC T6 Gb certified with IP67 protection, this purpose-engineered floodlight features Die-Cast Aluminum ADC12 with Marine-Grade Coating for demanding classified area applications.
Key Features
- 300W High-Efficiency Output - 39000lm total luminous flux at 130lm/W, replacing traditional HID fixtures with superior energy performance
- IECEx Ex d IIC T6 Gb Certified - Full explosion-proof certification for Zone 1/Zone 2 gas and Zone 21/Zone 22 dust hazardous atmospheres
- Drilling Rig Optimized - Vibration-dampened mounting system rated for continuous 5-15Hz drill floor vibration, with redundant cable gland entries for harsh offshore duty
- IP67 Protection - Fully sealed against environmental ingress for reliable outdoor and industrial operation
- High Transmittance Tempered Glass - Safety glass lens with excellent light transmission and impact resistance

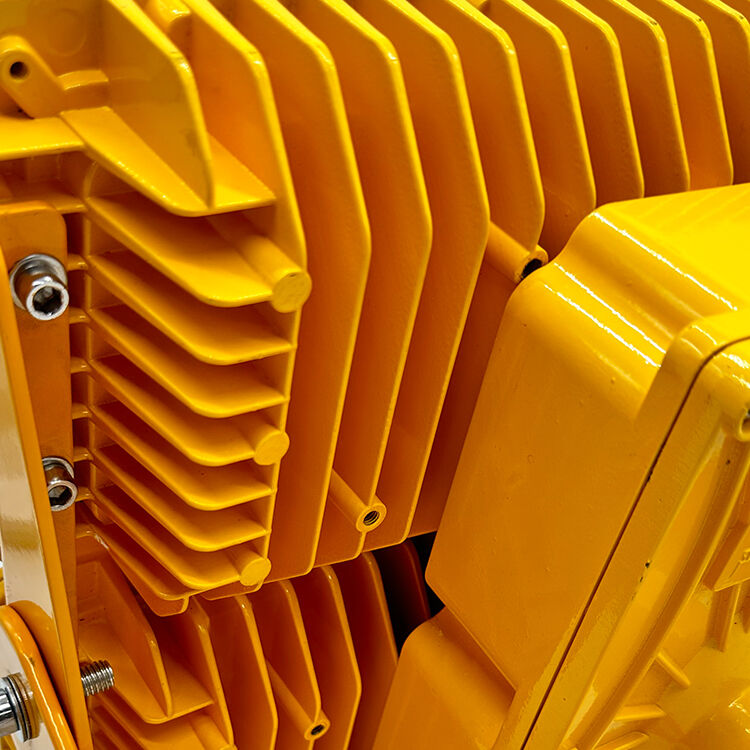

- Die-Cast Fin Heat Dissipation - Advanced thermal management ensuring consistent 300W performance and extended LED lifespan
- 180° Adjustable Bracket - Flexible angle adjustment for precise positioning in any installation scenario
- Universal Voltage Input - Compatible with global power distribution systems for simplified international deployment
- 5-Year Warranty - Backed by ≥50,000 hours L70 rated lifespan and factory quality testing
Applications
Engineered for Offshore drilling rigs, jack-up platforms, semi-submersibles, and open-deck marine classified zones:
- Oil and gas exploration, production and refining facilities
- Petrochemical processing and chemical manufacturing plants
- Offshore platforms, FPSOs and marine terminals
- Pharmaceutical and food processing classified zones
- Mining, tunneling and underground hazardous spaces
- Emergency and safety-critical lighting applications
Technical Specifications
| Model Number | EPFL-300W-DRL |
| Power Consumption | 300W |
| Luminous Flux | 39000lm |
| Efficacy | 130lm/W |
| Beam Angle | 90° |
| Color Temperature | 5000K |
| LED Chip | Bridgelux SMD 3030 |
| IP Rating | IP67 |
| Housing Material | Die-Cast Aluminum ADC12 with Marine-Grade Coating |
| Operating Temperature | -40°C to +60°C |
| Certification | IECEx Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
Each unit undergoes 100% factory testing of the explosion-proof enclosure integrity and photometric performance verification. Our 5-year warranty reflects confidence in the long-term reliability of the EPFL-300W-DRL design.
For bulk orders, OEM customization, or technical inquiries, please contact our sales team.
