Type II Medium Optics LED Stadium Lighting SMD3030 IP66 for Outdoor Sports Arena
Product Details:
| Place of Origin: | Chinese Mainland |
| Brand Name: | Fins board, BOCAQ |
| Certification: | CE, ROHS, FCC, PSE, CCC, UL, ISO9001, BSCI |
| Model Number: | RFFL-18 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 40-220 / Piece |
| Packaging Details: | Box package with bubble or foam protection, export carton, or as customized |
| Delivery Time: | 25-30 days or as confirmed |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 5000 Pieces per Month |
|
Detail Information |
|||
| LED Power: | 200W / 400W / 600W / 800W / 1000W / 1200W | Luminous Efficiency: | 110-120 Lm/w |
|---|---|---|---|
| Light Source: | LED SMD3030 | Optics: | Type II-Medium |
| Lens Angle: | 10/20/45/90 Degree | IP Rating: | IP66 |
| IK Rating: | IK08 | Lifespan: | 50000 Hours |
| Usage: | Outdoor Sports Arena / Stadium / Field | Warranty: | 3/5 Years |
| Highlight: | Type II LED stadium lighting SMD3030,Medium optics stadium lighting IP66,Outdoor sports arena LED lighting |
||
Product Description

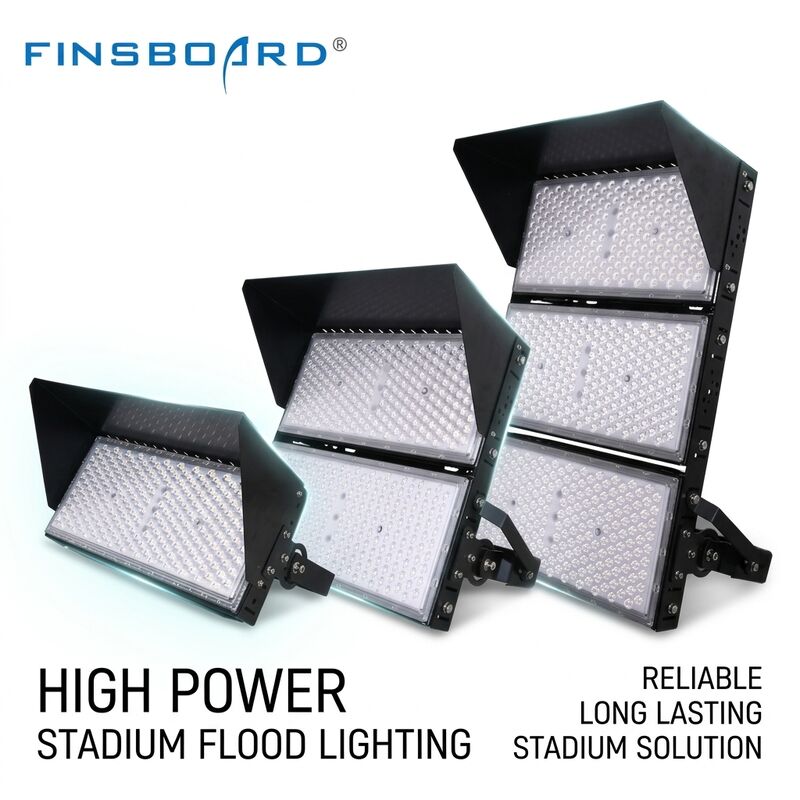

Type II Medium Optics LED Stadium Lighting
The Type II Medium Optics LED Stadium Lighting applies proven asymmetric light distribution to outdoor sports arenas. The Type II-Medium optic directs light forward and across the ground rather than wasting it behind the pole or into the sky, improving uniformity while reducing glare and light trespass for neighboring areas.
Key Features
- Type II Medium Distribution: Asymmetric optic directs light onto the field, cutting waste, glare and light pollution
- SMD3030 Uniform Illumination: Reliable 3030 chips maintain consistent brightness and color across the entire installation
- Outdoor Sports Arena Focus: Engineered for arenas, courts and fields where visibility and comfort are priorities
- IP66 and IK08 Rated: Sealed, impact-resistant body withstands weather, dust and typical venue wear
- High Luminous Efficiency: 110-120 lm/w reduces power consumption for required brightness levels
- Long 50,000-Hour Life: Extended replacement intervals lower maintenance and ownership costs
Technical Specifications
| Model | RFFL-18 |
| LED Power | 200W / 400W / 600W / 800W / 1000W / 1200W |
| Luminous Efficiency | 110-120 lm/w |
| Light Source | LED SMD3030 |
| Optics | Type II-Medium |
| Lens Angle | 10° / 20° / 45° / 90° |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Lifespan | 50,000 Hours |
| Usage | Billboards / Construction Sites / Railway Stations |
| Warranty | 3 / 5 Years |
Applications
Suitable for outdoor sports arenas, courts, fields and training grounds. Also ideal for billboards, construction sites and railway areas where controlled, even illumination is required.
Packaging & Quality Assurance
Each unit ships in a foam-lined box inside a reinforced export carton with mounting hardware included. Every batch undergoes high-potential electrical testing, inrush and ageing burn-in, water-spray IP66 verification and IK08 impact checks before packing. A 3-year warranty is standard and extendable to 5 years, backed by ready spare parts and responsive technical support.
