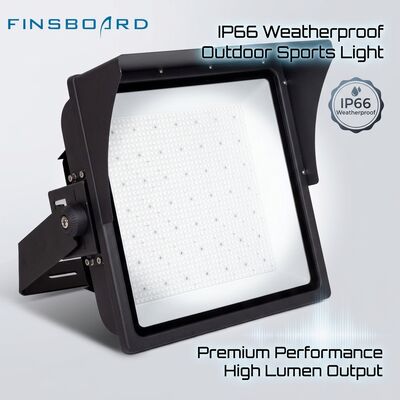

High Efficiency 120lm Per Watt LED Stadium Flood Light SMD3030 for Construction Site
Product Details:
| Place of Origin: | Chinese Mainland |
| Brand Name: | Fins board, BOCAQ |
| Certification: | CE, ROHS, FCC, PSE, CCC, UL, ISO9001, BSCI |
| Model Number: | RFFL-18 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Pieces |
|---|---|
| Price: | USD 40-220 / Piece |
| Packaging Details: | Box package with bubble or foam protection, export carton, or as customized |
| Delivery Time: | 25-30 days or as confirmed |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 5000 Pieces per Month |
|
Detail Information |
|||
| LED Power: | 200W / 400W / 600W / 800W / 1000W / 1200W | Luminous Efficiency: | 110-120 Lm/w |
|---|---|---|---|
| Light Source: | LED SMD3030 | Optics: | Type II-Medium |
| Lens Angle: | 10/20/45/90 Degree | IP Rating: | IP66 |
| IK Rating: | IK08 | Lifespan: | 50000 Hours |
| Usage: | Construction Site / Stadium / Outdoor Area | Warranty: | 3/5 Years |
| Highlight: | high efficiency LED stadium flood light,120lm per watt SMD3030 flood light,construction site LED stadium lighting |
||
Product Description
Product Overview
The High Efficiency 120lm Per Watt LED Stadium Flood Light is engineered for operators prioritizing lumens delivered per watt consumed. Operating at 110-120 lm/w, this fixture maximizes usable light output while minimizing electricity consumption, enabling bright illumination of large outdoor areas without excessive power costs. The proven LED SMD3030 light source ensures stable color performance, while Type II-Medium optics with 10/20/45/90 degree lens options provide flexible beam shaping for various applications. With IP66 and IK08 ratings, it withstands harsh construction sites and sports venues, delivering years of efficient, low-maintenance operation.
Key Features
110-120 lm/w Efficiency: Industry-leading luminous efficiency converts electricity into visible light with minimal waste heat.
SMD3030 LED Light Source: Reliable 3030 chip platform ensures consistent color and output across all fixture models.
Construction Site Durability: IP66 and IK08 rated housing protects against dust, rain, and physical impacts in demanding environments.
Flexible Lens Angles: Choose from 10°, 20°, 45°, or 90° optics to match specific narrow spot or wide area lighting requirements.
Lower Energy Bills: High efficiency reduces wattage consumption for equivalent brightness, cutting operational costs and emissions.
50,000-Hour Rating: Extended service life minimizes maintenance requirements and operational downtime.
Technical Specifications
| Model | RFFL-18 |
| LED Power | 200W / 400W / 600W / 800W / 1000W / 1200W |
| Luminous Efficiency | 110-120 lm/w |
| Light Source | LED SMD3030 |
| Optics | Type II-Medium |
| Lens Angle | 10° / 20° / 45° / 90° |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Lifespan | 50,000 Hours |
| Usage | Billboards / Construction Sites / Railway Stations |
| Warranty | 3 / 5 Years |
Applications
Ideal for construction sites, temporary work compounds, industrial yards, sports fields, arenas, and billboards requiring efficient, reliable illumination during extended operating hours.
Packaging & Quality Assurance
Each unit ships in a foam-lined box within a reinforced export carton, complete with mounting hardware. Every batch undergoes comprehensive testing including high-potential electrical testing, inrush current and aging burn-in, IP66 water-spray verification, and IK08 impact resistance checks. Standard 3-year warranty is available with optional extension to 5 years, supported by readily available spare parts and responsive technical assistance.
