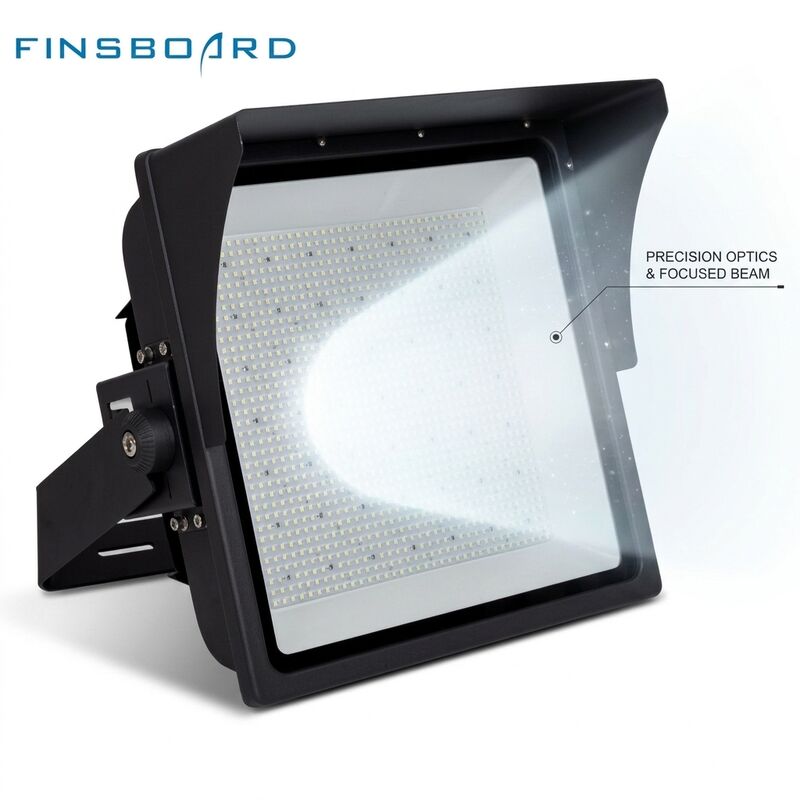

Smart Dimmable 1200W LED Stadium Flood Light 0-10V Controllable Anti-Glare Optics IP66 for Golf Course Arena

The BSL-1200S represents the convergence of high-output LED stadium lighting with intelligent control and environmentally responsible optical design. Delivering 180,000 lumens from 1200 watts, this flagship floodlight integrates seamless 0-10V and DALI dimming protocols that enable venues to dynamically adjust illumination levels for different activities, from full broadcast-level output for televised championship events to reduced maintenance-level lighting for groundskeeping crews. What truly sets the BSL-1200S apart is its advanced precision optics system, which employs multi-segment reflector technology and integrated external visors to precisely direct light onto the intended playing surface while dramatically reducing upward light spill and off-site glare. For golf courses bordering residential communities, ski resorts in ecologically sensitive mountain environments, and urban stadiums facing strict light pollution ordinances, the BSL-1200S offers a compelling combination of raw power and responsible photometric control that satisfies both performance requirements and community relations objectives.

• Intelligent Dimming Control: Native 0-10V and DALI (IEC 62386) protocol support enables stepless dimming from 10% to 100% output. Venues can program preset scenes for broadcast events, training sessions, maintenance periods, and emergency egress, reducing energy consumption during non-peak hours while preserving the ability to instantly ramp to full output when needed.
• Advanced Anti-Glare Optics: The multi-segment reflector design incorporates three independently optimized optical zones that shape the beam distribution at source level, while external visors block direct line-of-sight to the LED array from off-axis viewing angles above 65°. This dual-layer approach achieves a Glare Rating (UGR) below 22 for typical stadium mounting configurations.
• Precision Light Distribution: Asymmetric beam patterns and full-cutoff optical designs are available, directing over 95% of total luminous flux onto the designated playing surface or fairway. Spill light at property boundaries is maintained below 5 lux for urban installations and below 1 lux for environmentally sensitive zones adjacent to residential areas or nature preserves.
• Dark Sky Compliance: The BSL-1200S full-cutoff optical configuration meets or exceeds IDA (International Dark-Sky Association) criteria for uplight restriction, with zero candela output above 90° from nadir. This qualifies the fixture for use in jurisdictions enforcing strict outdoor lighting ordinances and dark-sky reserve buffer zones.
• IoT-Ready Connectivity: The DALI-2 interface enables integration with building management systems (BMS), DMX theatrical control consoles, and cloud-based IoT lighting management platforms. Facility managers can monitor energy consumption per fixture, schedule automated dimming profiles, and receive real-time fault alerts through a centralized dashboard accessible from any web-connected device.
• Adaptive Thermal Management: An onboard microcontroller continuously monitors LED junction temperature and ambient conditions, automatically adjusting driver output current when operating temperatures approach rated limits. This intelligent thermal throttling protects LED longevity without abrupt shutoff, gradually reducing output by up to 15% only under extreme conditions exceeding 50°C ambient.
• Wireless Control Ready: An optional Zigbee 3.0 / Bluetooth Mesh wireless module enables fixture-to-fixture mesh networking for installations where running control wiring is impractical. Group control, scene recall, and scheduled automation functions operate independently of external controllers once commissioned via a smartphone app or web portal.

The BSL-1200S is purpose-engineered for venues where intelligent lighting control and environmental sensitivity are as important as raw illumination power. Golf courses and country clubs represent a primary application, where the combination of 0-10V dimming and precision optics allows maintenance crews to illuminate only active holes during evening play while keeping adjacent fairways dark, simultaneously reducing energy consumption and respecting the natural nighttime ambiance valued by club members and neighboring residents. Ski resorts benefit from the ability to program automated dimming schedules that adjust output based on lift operating hours, weather conditions, and guest density, while the full-cutoff optics prevent upward light that can disorient nocturnal wildlife and create hazardous glare for snowcat operators on upper mountain slopes. Urban stadiums and arenas surrounded by residential neighborhoods leverage asymmetric beam distributions that concentrate illumination on the field of play while maintaining compliant spill-light levels at property lines. Additional applications include equestrian centers where sudden brightness changes can startle horses, making smooth dimming transitions essential; outdoor concert venues where lighting must shift between full illumination for load-in/load-out and atmospheric low-level lighting during performances; and cricket grounds where the extended duration of test matches necessitates flexible lighting control to manage energy costs across multi-day events. Municipal sports complexes deploying multiple BSL-1200S fixtures across adjacent fields can implement zone-based control strategies that activate only the fields in active use.

Each BSL-1200S undergoes a comprehensive quality assurance protocol encompassing 48-hour burn-in verification, full-range dimming functionality testing across 0-10V and DALI interfaces, integrating sphere photometric measurement at 10% dimming increments, IP66 certification validation, and wireless module pairing verification when the optional Zigbee/Bluetooth module is specified. The fixture ships in reinforced packaging with custom EPE foam inserts, and each unit includes a factory test report documenting measured luminous flux, power consumption, power factor, and CRI at full output. A complete commissioning kit containing a handheld DALI programmer, 0-10V test potentiometer, and quick-reference control wiring guide is available as an optional accessory. The 5-year warranty covers LED modules, driver electronics, control interfaces, and housing integrity. Our applications engineering team provides complimentary lighting control design services including DALI network topology planning, DMX universe mapping, and integration specification for BMS and IoT platforms. On-site commissioning support by factory-trained technicians is available for projects exceeding 100 fixtures, ensuring that the full capability of the intelligent control system is realized from day one of operation.
