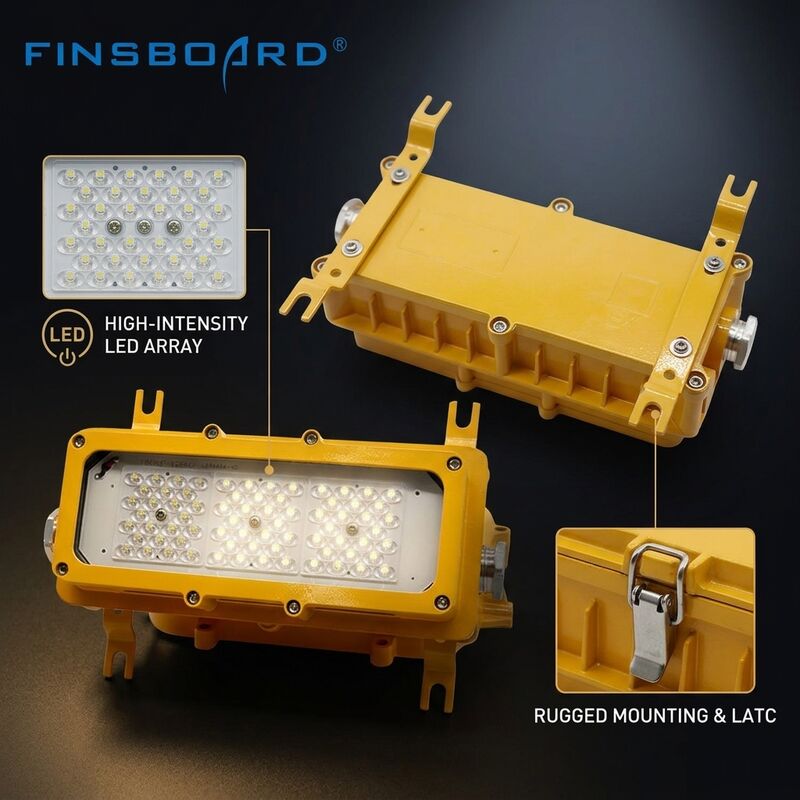

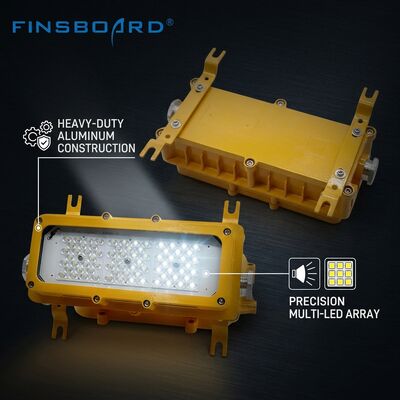

50000H Long-Life 300W LED Explosion Proof Light 30 60 90 Beam LUMILEDS LM-80 ATEX IIb T6 IP65 Hazardous Area Fixture
Product Details:
| Place of Origin: | China |
| Brand Name: | RFEPL |
| Certification: | CE, ROHS, CCC, ATEX |
| Model Number: | RFEPL8280-300W-MB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | USD 309-599/Piece |
| Packaging Details: | K=K Export Carton with EPE Foam Inner Protection |
| Delivery Time: | 15-25 Working Days |
| Payment Terms: | T/T,L/C,Western Union |
| Supply Ability: | 5000 Pieces per Month |
|
Detail Information |
|||
| Power: | 300W | Luminous Efficacy: | 100-120 LM/W |
|---|---|---|---|
| LED Chip Brand: | LUMILEDS | LED Certification: | LM-80 |
| Input Voltage: | AC100-277V | Power Factor: | ≥0.95 |
| Certifications: | CE, ROHS, CCC, ATEX | Explosion Proof Standard: | Ex Db Mb IIb T6 |
| Ingress Protection: | IP65 | Weather Protection: | WF2 |
| Surge Protection: | 6KV | Color Rendering Index: | CRI ≥80 |
| Housing Material: | Aluminum + Tempered Glass | Beam Angle Options: | 30°/60°/90° (Selectable) |
| Cable Specification: | 1.0mm² | Surface Finish: | Painting Yellow / Grey |
| Rated Lifespan: | 50,000 Hours (L90) | Operating Temperature: | -40°C To +60°C |
| Operating Humidity: | 10% To 90% RH | ||
| Highlight: | 300W LED explosion proof light,ATEX IIb hazardous area fixture,LUMILEDS LM-80 explosion proof lighting |
||
Product Description
50000H Long-Life 300W LED Explosion Proof Light
The RFEPL8280-300W-MB redefines long-term value in hazardous area illumination by combining an extraordinary 50,000-hour L90 rated service life with a versatile multi-beam optical system. This advanced fixture adapts to diverse installation geometries while maintaining exceptional performance in demanding environments.
Key Advantages: LUMILEDS LM-80 certified LED chips operated below maximum rating, advanced passive thermal management, and three precisely engineered beam angle options (30°, 60°, 90°) for optimal coverage patterns.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | RFEPL8280-300W-MB |
| Rated Power | 300W |
| Luminous Efficacy | 100-120 LM/W |
| LED Chip Brand | LUMILEDS (LM-80 Certified) |
| Lumen Maintenance | L90 @ 50,000 Hours (TM-21 Projected) |
| Input Voltage | AC100-277V, 50/60Hz |
| Power Factor | ≥0.95 |
| Color Rendering Index | CRI ≥80 |
| Beam Angle Options | 30° (Narrow) / 60° (Medium) / 90° (Wide) |
| Explosion Proof Standard | Ex db mb IIb T6 |
| Ingress Protection | IP65 |
| Housing Material | Die-Cast Aluminum + Tempered Glass |
| Operating Temperature | -40°C to +60°C |
| Certifications | CE, ROHS, CCC, ATEX |
Industrial Applications
This explosion-proof lighting solution is engineered for demanding hazardous area applications where reliability, longevity, and flexible beam control deliver maximum operational value.
- Refinery & Petrochemical Complexes: Standardized platform covering multiple area types with appropriate beam optics
- Mining Operations: 50,000-hour lifespan reduces costly production shutdowns for maintenance
- Pharmaceutical & Chemical Manufacturing: CRI 80+ color rendering for quality control inspection areas
- Food Processing Plants: Multi-beam flexibility adapts to changing equipment layouts
- Emergency Egress Lighting: Reliable illumination meeting life-safety regulatory requirements
Quality Assurance & Support
Each unit undergoes comprehensive quality control including LM-79 photometric testing and individual beam pattern verification. Products are packed in export-grade protective packaging with clear labeling.
Warranty: Comprehensive 3-year coverage for complete luminaire including LED modules, driver, and optical components.
Engineering Support: Complimentary lighting design services including photometric calculations and layout recommendations to meet OSHA, IEC, and local regulatory requirements.
