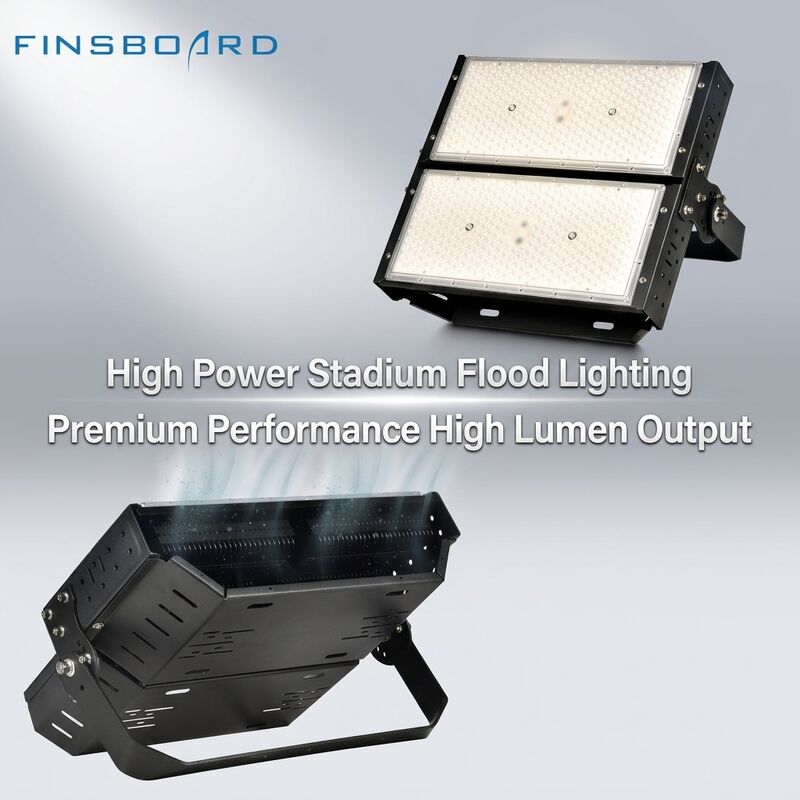

1200W Energy-Efficient IP66 Waterproof LED Stadium Light for International Championship Stadiums 5000K
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | WNRLN |
| Certification: | CE, ROHS, FCC, LM-80, IP66, TUV, CB, SAA |
| Model Number: | SL1200W-IP66 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 Pieces |
|---|---|
| Price: | USD 680-890 / Piece |
| Packaging Details: | WNRLN reinforced plywood crate with custom EPE foam, export-grade palletized packaging |
| Delivery Time: | 15-20 working days for stock, 30-45 days for bulk orders |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 1000 Pieces per Month |
|
Detail Information |
|||
| Power: | 1200W | Luminous Efficacy: | 130 Lm/W |
|---|---|---|---|
| Luminous Flux: | 156000 Lm | Color Temperature: | 5000K |
| Beam Angle: | 25° | Input Voltage: | AC100-277V |
| Power Factor: | ≥0.95 | CRI: | ≥80 |
| IP Rating: | IP66 | IK Rating: | IK10 |
| LED Chip Brand: | LUMILEDS | LED Report: | LM-80 |
| Flicker-Free: | ≤0.3% Broadcast | Lifespan L70: | 50000 Hours |
| Operating Temperature: | -40°C To +50°C | Material: | Die-cast Aluminum + Tempered Glass |
| Surge Protection: | 10KV/20KA | Mounting Options: | Custom High-Mast, Truss Mount, Catwalk Mount |
| Product Size: | 1050 X 820 X 210 Mm | Net Weight: | 32.5 Kg |
| Highlight: | IP66 Championship Stadium Light,Energy Efficient Sports Lighting,International Tournament LED Fixture |
||
Product Description
1200W Energy-Efficient IP66 Waterproof LED Stadium Light for Championship Venues
The 1200W Energy-Efficient IP66 Waterproof LED Stadium Light is our flagship luminaire, purpose-engineered for the world’s most prestigious sporting venues—FIFA World Cup stadiums, Olympic competition arenas, international athletics stadiums, and elite-level championship facilities. Delivering a monumental 156,000 lumens at 5000K daylight white, this fixture achieves Class V (FIFA Pro) and equivalent elite-tier lighting standards from extreme mounting heights of 60 to 100 meters.
Championship-Grade Illumination Specifications
| Parameter | 1200W LED Stadium Light | 3500W Metal Halide Equivalent |
|---|---|---|
| Lumen Output | 156,000 lm | ~160,000 lm (initial, degrades rapidly) |
| System Power | 1,200W | ~3,850W (with ballast) |
| Lumen Maintenance | L70 at 50,000 hours | L50 at 3,000 hours |
| Color Temperature Stability | ±100K over lifespan | ±500K, shifts over life |
| Flicker Rate | ≤0.3% | 5-15% (unusable for broadcast) |
| Annual Energy Cost* | ~$630 | ~$2,022 |
*Based on 12 hours daily operation at $0.12/kWh
IP66 Waterproof Engineering for Landmark Venues
International championship stadiums represent generational infrastructure investments designed to serve for 30 to 50 years or more. The IP66 waterproof rating of our 1200W stadium light ensures that the lighting system retains its certified performance throughout this extended service life. Every fixture features multi-layer sealing at all access points, marine-grade stainless steel external fasteners, and a self-draining enclosure geometry that prevents water accumulation in any mounting orientation. The IK10 impact rating—the highest in the IEC 62262 standard—provides unmatched mechanical protection.
Ultra-Narrow Beam for Extreme Mounting Heights
The 25-degree narrow beam optic is specifically designed for installations where fixtures must be mounted 60 to 100 meters above the playing surface. This precision optical system concentrates luminous flux into a tightly controlled distribution pattern, achieving the high illuminance levels required for FIFA Pro, World Athletics Class 1, and Olympic broadcast standards while minimizing spill light beyond the venue perimeter—an increasingly important consideration for stadiums located in urban environments.
Flagship Features
- 156,000 Lumens Output: The highest output in our stadium lighting range, capable of single-fixture coverage for zones that would require multiple smaller fixtures
- 25° Precision Beam: Proprietary optics designed through iterative ray-tracing simulation and validated with goniophotometer testing
- IK10 Impact Rating: Maximum mechanical protection for landmark installations where lighting infrastructure must perform without compromise for decades
- Broadcast Ready: ≤0.3% flicker certified for 4K, 8K, HDR, and ultra-slow-motion camera systems at all frame rates
- 50,000-Hour L70: Over a decade of rated service life under typical championship venue operating schedules
- Global Certifications: CE, ROHS, FCC, TUV, CB, and SAA for international deployment without re-certification
For international championship stadiums, Olympic venues, FIFA World Cup arenas, and elite multi-sport complexes where lighting performance is scrutinized by billions of viewers worldwide, the 1200W Energy-Efficient IP66 Waterproof LED Stadium Light delivers uncompromising illumination excellence.
