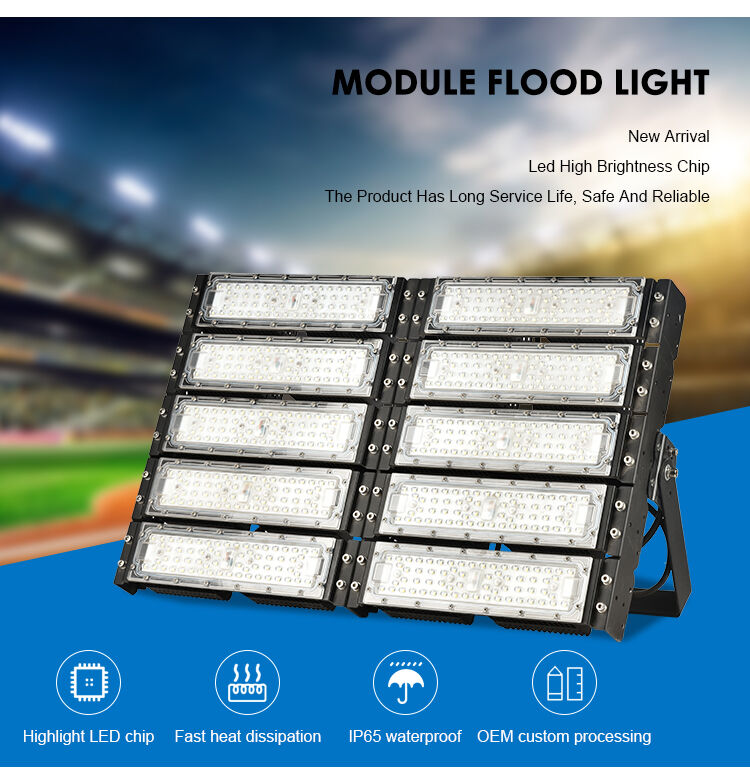

1000W Energy-Efficient IP66 Waterproof LED Stadium Light for Large Arena Coliseum Competitions 5700K
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | WNRLN |
| Certification: | CE, ROHS, FCC, LM-80, IP66, TUV, CB |
| Model Number: | SL1000W-IP66 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | USD 550-720 / Piece |
| Packaging Details: | WNRLN reinforced carton with custom EPE foam, export-grade palletized master carton |
| Delivery Time: | 10-15 working days for stock, 25-35 days for bulk orders |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 1500 Pieces per Month |
|
Detail Information |
|||
| Power: | 1000W | Luminous Efficacy: | 130 Lm/W |
|---|---|---|---|
| Luminous Flux: | 130000 Lm | Color Temperature: | 5700K |
| Beam Angle: | 45° | Input Voltage: | AC100-277V |
| Power Factor: | ≥0.95 | CRI: | ≥80 |
| IP Rating: | IP66 | IK Rating: | IK09 |
| LED Chip Brand: | LUMILEDS | LED Report: | LM-80 |
| Flicker-Free: | ≤0.3% Broadcast | Lifespan L70: | 50000 Hours |
| Operating Temperature: | -40°C To +50°C | Material: | Die-cast Aluminum + Tempered Glass |
| Surge Protection: | 10KV/20KA | Mounting Options: | High-Mast Bracket, Pole Mount, Truss Mount |
| Product Size: | 920 X 720 X 185 Mm | Net Weight: | 26.8 Kg |
| Highlight: | Waterproof Arena LED Lighting,Energy Efficient Coliseum Light,Large Venue Stadium Illumination |
||
Product Description
1000W Energy-Efficient IP66 Waterproof LED Stadium Light for Coliseums and Large Arenas
The 1000W Energy-Efficient IP66 Waterproof LED Stadium Light represents the apex of large-venue illumination technology. Generating 130,000 lumens at 5700K cool white, this fixture is engineered to deliver broadcast-quality illumination across the most expansive indoor arenas, outdoor coliseums, and multi-purpose event venues where lighting performance directly impacts the experience of tens of thousands of spectators and global broadcast audiences.
Coliseum-Scale Illumination Performance
Large arenas and coliseums present unique lighting challenges: extreme mounting heights of 50 to 80 meters, vast illuminated areas exceeding 10,000 square meters, and the conflicting demands of horizontal illuminance for playing surfaces and vertical illuminance for broadcast cameras and spectator visibility. Our 1000W LED stadium light addresses all these requirements through its 45-degree beam angle and 130,000-lumen output, achieving Class I (FIFA) and equivalent lighting standards from a reduced fixture count compared to traditional solutions.
Energy-Efficient Transformation of Arena Economics
| Scenario | Traditional HID Solution | 1000W LED Stadium Light | Annual Savings* |
|---|---|---|---|
| 60-Fixture Arena | 60 × 3,000W MH (198kW) | 60 × 1,000W LED (60kW) | ~604,000 kWh |
| Maintenance | Annual re-lamping + ballast | Zero planned re-lamping | ~$35,000/year |
| Broadcast Ready | Requires supplementary | Native flicker-free | No supplementary cost |
*Based on 8 hours daily operation at $0.12/kWh
IP66 Waterproof Construction for Permanent Installations
Outdoor coliseums and large arenas require lighting that can endure decades of weather exposure without performance degradation. The IP66-rated sealed enclosure prevents moisture and dust ingress that would compromise optical performance, LED longevity, and electrical safety. Each fixture is individually pressure-tested prior to shipment, with test documentation available upon request for projects requiring third-party commissioning verification.
Advanced Features for Large-Scale Venues
- Flicker-Free ≤0.3%: Essential for high-frame-rate broadcast cameras and ultra-slow-motion replay systems used in sports production
- 5700K Cool White: Preferred color temperature for television production, providing optimal contrast and color balance for HD and 4K broadcast
- 45° Beam Angle: Balances throw distance and coverage uniformity for large-venue installations, reducing hot spots and dark zones
- IK09 Impact Rating: Withstands mechanical stress from severe weather, debris, and maintenance activities in large-scale installations
- 10KV/20KA Surge Protection: Comprehensive defense for exposed high-mast installations against lightning-induced electrical transients
Whether illuminating a 70,000-seat outdoor coliseum, an indoor basketball arena, or a multi-purpose event venue hosting international competitions, the 1000W Energy-Efficient IP66 Waterproof LED Stadium Light delivers the scale of illumination that premier sporting facilities demand.
