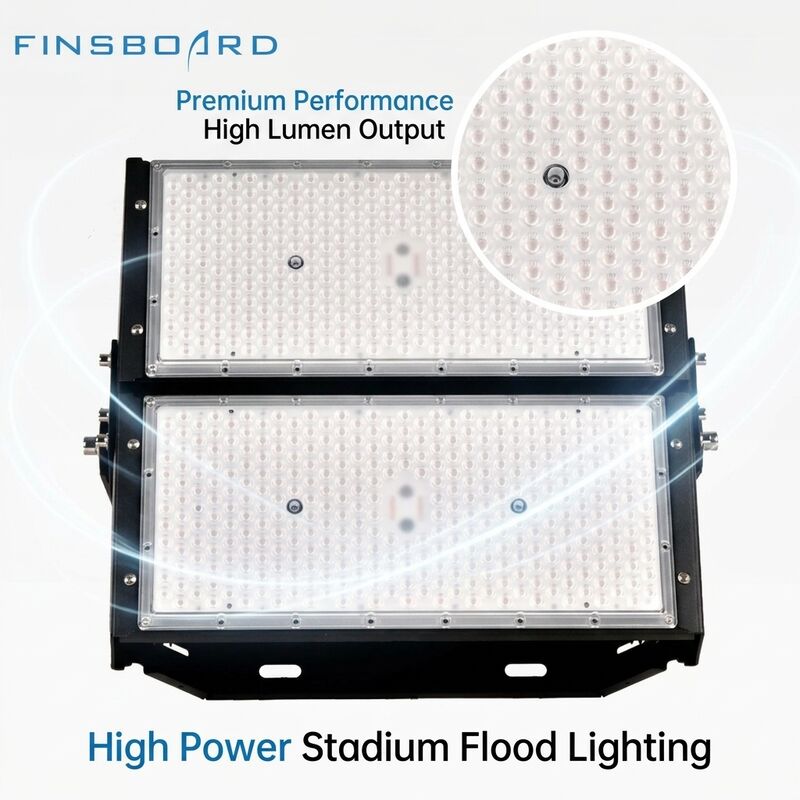

800W Energy-Efficient IP66 Waterproof LED Stadium Light for Major League Venue Illumination 5000K
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | WNRLN |
| Certification: | CE, ROHS, FCC, LM-80, IP66, TUV, CB |
| Model Number: | SL800W-IP66 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | USD 420-580 / Piece |
| Packaging Details: | WNRLN reinforced carton with custom EPE foam, export-grade palletized master carton |
| Delivery Time: | 10-15 working days for stock, 25-35 days for bulk orders |
| Payment Terms: | T/T,L/C,PayPal,Western Union |
| Supply Ability: | 2000 Pieces per Month |
|
Detail Information |
|||
| Power: | 800W | Luminous Efficacy: | 130 Lm/W |
|---|---|---|---|
| Luminous Flux: | 104000 Lm | Color Temperature: | 5000K |
| Beam Angle: | 30° | Input Voltage: | AC100-277V |
| Power Factor: | ≥0.95 | CRI: | ≥80 |
| IP Rating: | IP66 | IK Rating: | IK09 |
| LED Chip Brand: | LUMILEDS | LED Report: | LM-80 |
| Flicker-Free: | ≤0.3% Broadcast | Lifespan L70: | 50000 Hours |
| Operating Temperature: | -40°C To +50°C | Material: | Die-cast Aluminum + Tempered Glass |
| Surge Protection: | 10KV/20KA | Mounting Options: | High-Mast Bracket, Pole Mount, Truss Mount |
| Product Size: | 820 X 640 X 165 Mm | Net Weight: | 21.5 Kg |
| Highlight: | Energy Efficient Venue Lighting,IP66 Stadium LED Floodlight,Major League Sports Illumination |
||
Product Description
800W Energy-Efficient IP66 Waterproof LED Stadium Light for Major League Venues
The 800W Energy-Efficient IP66 Waterproof LED Stadium Light delivers an extraordinary 104,000 lumens of daylight-white illumination for major league sports venues, large-scale competition arenas, and premier event facilities. With a focused 30-degree beam optimized for high-mast deployments at 40 to 60 meters, this powerhouse luminaire provides the intense, uniform illumination that elite-level sports demand.
Elite-Level Illumination Engineering
| Parameter | 800W LED Stadium Light | 2500W Metal Halide Equivalent |
|---|---|---|
| Lumen Output | 104,000 lm | ~110,000 lm (initial, degrades rapidly) |
| System Power | 800W | ~2,750W (with ballast) |
| Lumen Maintenance | L70 at 50,000h | L50 at 6,000h |
| Energy Savings | — | Over 70% |
IP66 Waterproof Design for Permanent Outdoor Deployment
Major league stadiums and outdoor arenas subject lighting systems to decades of weather exposure. Our IP66 waterproof construction ensures complete protection against heavy rain, sleet, snow, and wind-driven dust throughout the fixture’s 50,000-hour rated lifespan. The die-cast aluminum alloy housing with corrosion-resistant treatment maintains structural integrity and thermal performance in coastal, tropical, and continental climate zones alike.
Advanced Thermal Architecture
Managing 800W of LED thermal load in an IP66-sealed enclosure represents a significant engineering challenge. Our proprietary finned heatsink design maximizes convective surface area while maintaining the sealed enclosure’s integrity. Computational fluid dynamics optimization ensures LED junction temperatures remain well within safe operating limits even during summer tournaments with 50°C ambient temperatures and direct solar loading on the fixture housing.
Key Performance Features
- 30° Focused Beam: Precision optics deliver concentrated illumination from high-mast positions while minimizing light pollution
- 5000K Daylight White: Optimal color temperature for television broadcast, player visibility, and spectator experience
- CRI ≥80: Accurate color rendering essential for sports where uniform and ball visibility is critical
- 10KV/20KA Surge Protection: Robust defense against lightning-induced transients on exposed high-mast installations
- Flicker-Free ≤0.3%: Compatible with 4K/8K broadcast and ultra-slow-motion replay systems
- IK09 Impact Rating: Enhanced mechanical protection for installations subject to severe weather and debris impact
For major league baseball stadiums, soccer arenas, international athletics venues, and premier event facilities that demand uncompromising illumination performance, the 800W Energy-Efficient IP66 Waterproof LED Stadium Light delivers championship-grade lighting with the reliability and efficiency that elite sporting institutions expect.
