600W Explosion Proof LED Flood Light IECEx Emergency Battery Backup 72000lm IP67 Copper-Free Aluminum Marine Lighting
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Fins board, BOCAQ |
| Certification: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| Model Number: | EPFL-600W-EMG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box package+ bubble or as customized |
| Delivery Time: | 10-15 days or confirm |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Power: | 600W | Luminous Flux: | 72000lm |
|---|---|---|---|
| Efficacy: | 120lm/W | Color Temperature: | 5000K (Cool White) |
| Beam Angle: | 120° | Input Voltage: | AC 100-277V 50/60Hz |
| LED Chip: | Philip.s Lumileds 3030 | IP Rating: | IP67 |
| Housing Material: | Copper-Free Aluminum Alloy With Marine-Grade Epoxy Coating | Lens Material: | Tempered Glass 5mm |
| Operating Temperature: | -40°C To +55°C | Certification: | IECEx Ex D IIC T6 Gb |
| Lifespan: | ≥50,000 Hours L70 | Warranty: | 5 Years |
| Highlight: | Emergency Explosion Proof Light,IECEx Battery Backup Floodlight,90min Autonomous Hazardous Light |
||
Product Description

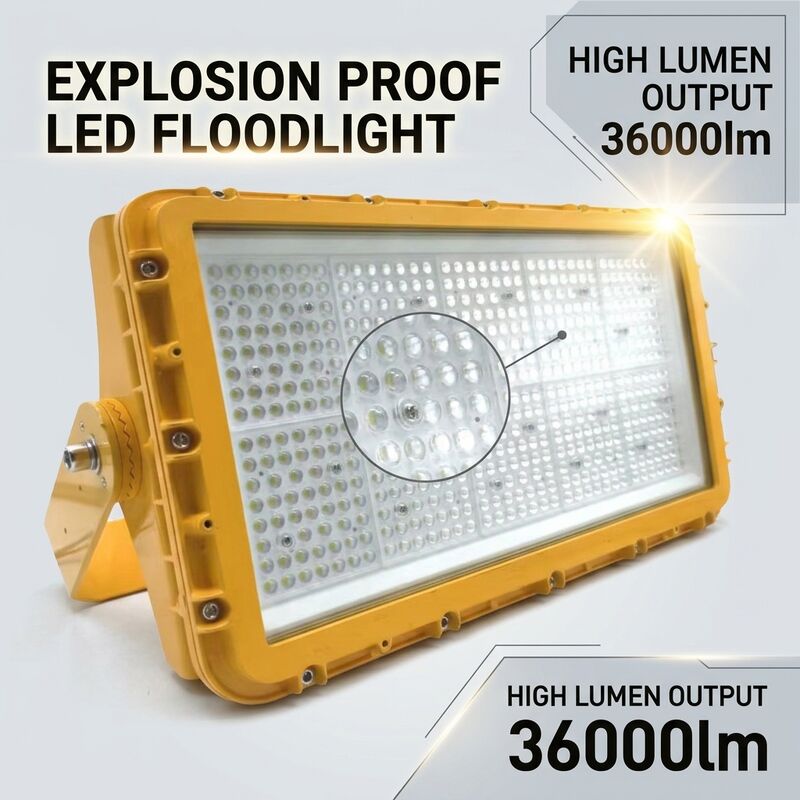

600W Explosion Proof LED Flood Light - IECEx Emergency Battery Backup
Product Overview
The EPFL-600W-EMG is a 600W explosion proof LED flood light engineered for demanding industrial environments. This wide 120° floodlight provides exceptional illumination while maintaining the strictest safety standards for hazardous locations.
Key Features
- 600W High Power Output - 72000lm total luminous flux with 120lm/W efficacy, replacing traditional HID equivalents with significant energy savings
- IECEx Ex d Certified - IECEx Ex d IIC T6 Gb for hazardous gas and dust atmospheres
- Robust Copper-Free Aluminum Alloy Housing - Copper-Free Aluminum Alloy with Marine-Grade Epoxy Coating with corrosion-resistant coating for long-term durability
- IP67 Protection - Fully sealed against environmental ingress, suitable for the harshest industrial environments
- 5mm Tempered Glass Lens - High-transmittance safety glass with impact resistance rating
- Philip.s Lumileds 3030 LEDs - Premium LED chips delivering stable 5000K (Cool White) light with excellent uniformity
- 120° Beam Angle - Optimized wide-angle light distribution for large-area coverage for industrial hazardous area applications
- Universal Voltage Input - AC 100-277V 50/60Hz compatible with global electrical systems
- Multiple Mounting Options - Adjustable bracket, pole mount, and ceiling mount configurations included
- 5-Year Warranty - Backed by ≥50,000 hours L70 lifespan testing
- Integrated Battery Backup - Built-in LiFePO4 battery module provides >90 minutes of autonomous operation at full brightness upon mains power loss
- Automatic Failover - Seamless <0.2 second switchover with self-test functionality compliant with IEC 60598-2-22 emergency lighting standards
Applications
Ideal for hazardous classified areas including:
- Emergency egress lighting, muster stations, lifeboat embarkation areas, and safety-critical zones
- Oil refineries and petrochemical processing plants
- Offshore drilling platforms and FPSO vessels
- Chemical storage warehouses and mixing facilities
- Gas compressor stations and LNG terminals
- Paint spray booths and solvent handling areas
Technical Specifications
| Model Number | EPFL-600W-EMG |
|---|---|
| Power Consumption | 600W |
| Luminous Flux | 72000lm |
| Efficacy | 120lm/W |
| Color Temperature | 5000K (Cool White) |
| Beam Angle | 120° |
| Input Voltage | AC 100-277V 50/60Hz |
| LED Chip | Philip.s Lumileds 3030 |
| IP Rating | IP67 |
| Housing Material | Copper-Free Aluminum Alloy with Marine-Grade Epoxy Coating |
| Lens | Tempered Glass 5mm |
| Operating Temperature | -40°C to +55°C |
| Mounting | Adjustable Bracket / Pole Mount / Ceiling Mount |
| Certification | IECEx Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
ECER delivers explosion proof LED flood lights that combine cutting-edge LED technology with rigorous safety engineering. Each unit undergoes 100% factory testing including pressure testing of the explosion-proof enclosure and photometric verification.
For bulk orders, OEM/ODM customization, or technical inquiries, please contact our sales team.
