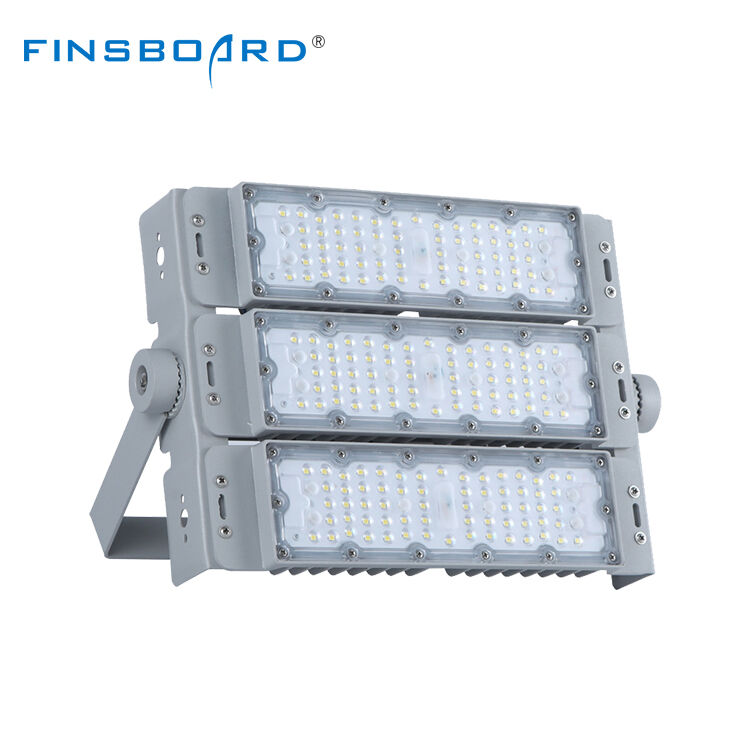

IP65 Waterproof LED Flood Lights for Outdoor Stadiums Lighting
Product Details:
| Place of Origin: | Chinese Mainland |
| Brand Name: | Fins board, BOCAQ |
| Certification: | CE,ROHS,FCC,PSE,CCC,UL,ISO9001,BSCI |
| Model Number: | RFFL-11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box package+ bubble or as customized |
| Delivery Time: | 25-30days or confirm |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Model: | Modular LED Floodlight | Certifications: | CE, RoHS, ETL |
|---|---|---|---|
| Led: | SMD2835/3030 | Options: | Timer/DALI/Photosensor Etc. |
| CCT: | 3000-6500K | Rated Voltage: | AC180-265V |
| Operating Temperature: | -40°C To 50°C | Rated Power: | 50w 100w 150w 200w 250w 300w 400w 500w 600w |
| Color Rendering Index: | Ra>75 | Working Temperture: | -20~50℃ |
Product Description
IP65 Waterproof LED Flood Lights for Outdoor Stadiums Lighting
Testing a Device for IP65 Waterproof Rating
To determine if a device meets the IP65 waterproof standard, a series of tests must be conducted to evaluate its resistance to dust and water. Here are the steps involved:
1. Dust Resistance Test (First Digit 6) Test Environment: The device should be placed in a dust chamber where fine dust particles are circulated.
Testing Procedure: Seal the device to ensure there are no openings.
Expose it to the dust environment for a specified duration (typically 8 hours).
Monitor for any ingress of dust. The device should remain dust-tight, meaning no dust can enter the enclosure.
2. Water Resistance Test (Second Digit 5) Test Environment: Use a water spray test setup that can create jets of water.
Testing Procedure: Position the device at an angle, typically at around 60 degrees from the vertical.
Spray it with water jets at a pressure of 12.5 liters per minute from a distance of 2.5 to 3 meters. The jets should be directed from different angles to thoroughly test the enclosure.
The water spray test should last for about 15 minutes.
Assessment: After the test, check the device for any signs of water ingress. There should be no water penetration inside the enclosure.
3. Post-Test Inspection After completing both tests, inspect the device’s functionality and integrity: Look for any visible dust accumulation or moisture inside the enclosure.
Check electrical components for operational issues, which would indicate waterproof failure.
Description
|
Model
|
RFFL-11
|
||||
|
Power
|
50W
|
100W
|
150W
|
200W
|
250W
|
|
Size(mm)
|
175*350*75
|
250*350*75
|
340*350*75
|
410*350*75
|
485*350*75
|
|
Power
|
300W
|
300W-2
|
400W
|
500W
|
600W
|
|
Size(mm)
|
575*350*75
|
665*295*75
|
665*370*75
|
665*455*75
|
665*535*75
|
|
Material
|
Aluminum+ pc
|
||||
|
Driver
|
AC85-265V
|
||||
|
Light Source
|
SMD 2835
|
||||
|
IP Rating
|
IP65
|
||||
|
Color Temperature
|
3000-6500K
|
||||
|
Beam Angle
|
30° (add 5RMB)/60°(add 2 RMB)/90/70*145
|
||||
|
Application
|
Basketball/Court Stadium/Tunnel/Farm
|
||||
Features
The RFFL-11 series operates on an AC voltage range of 85-265V, making it compatible with various power systems globally. Using SMD 2835 as the light source, these floodlights deliver bright, efficient lighting. The color temperature ranges from 3000K (warm white) to 6500K (cool white), allowing customization according to the application and preference.
IP Rating and Beam Angles
With an IP65 rating, the floodlights are designed to withstand harsh weather conditions, being both dust-tight and protected against water jets. This makes them especially suitable for outdoor installations. Users can choose from different beam angles to adjust the light spread according to their needs: 30°, 60°, and 90°, with options for additional charges for specific angles.
Applications
These floodlights are particularly effective for illuminating large outdoor spaces. They are ideal for sporting venues like basketball courts and stadiums, where bright and uniform lighting is crucial for performance and safety. Additionally, the lights can be employed in tunnels and farming areas, providing necessary visibility for operations.
Advantages
The LED floodlight modules not only reduce energy consumption compared to traditional lighting solutions but also have a longer lifespan, resulting in lower maintenance costs. Their efficient heat dissipation properties ensure longevity and stable performance, making them a cost-effective choice in the long run.
