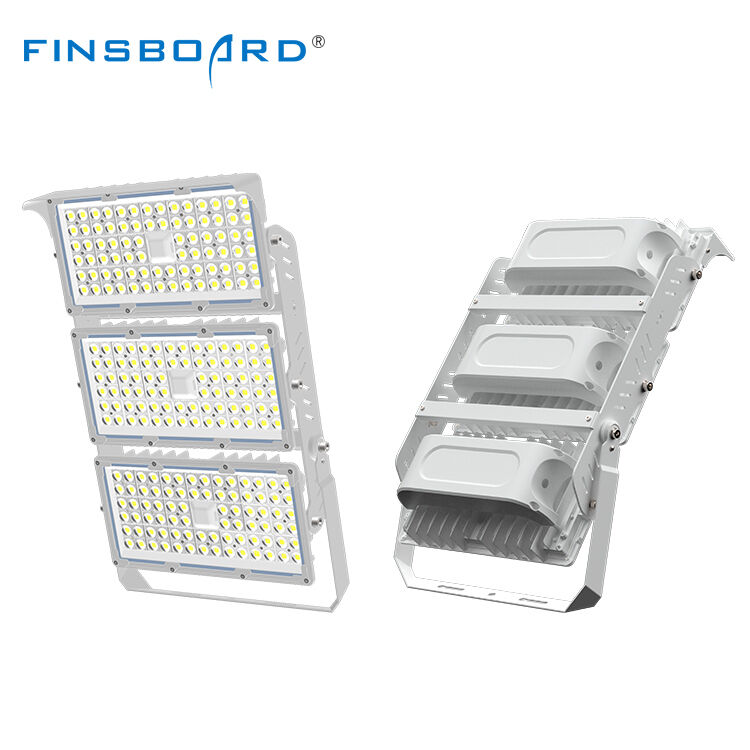

Project Use Modular Ip65 High Mast Light Tunnel Spotlight Outdoor Football Stadium LED Flood Light
Product Details:
| Place of Origin: | Chinese Mainland |
| Brand Name: | Fins board, BOCAQ |
| Certification: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box package+ bubble or as customized |
| Delivery Time: | 10-15 days or confirm |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Material: | Aluminum | Beam Angle: | 120 Degrees |
|---|---|---|---|
| Driver: | AC100-270V | Ip Rating: | IP65 |
| CCT: | 3000-6500K | Guarantee: | 2 / 3 / 5 Years |
| Power Consumption: | 100W | Waterproof: | IP65 |
| Product Size: | 442*290*121552*441*121 | Power: | 200w |
| Lumen Efficiency: | 100lm/w Or As Customized | Chip: | 2835/3030 Lamp Bead |
| Warranty: | 2 Years | Lens: | PC Optical Lens |
| Highlight: | IP65 modular LED flood light,high mast tunnel spotlight,outdoor football stadium floodlight |
||
Product Description
Project Use Modular IP65 High Mast Light Tunnel Spotlight Outdoor Football Stadium LED Flood Light
Product Overview
The RFFL-16 model by Rongfei represents a cutting-edge solution in LED modular flood lights. Engineered for efficiency and versatility, it caters to various lighting applications including basketball courts, stadiums, tunnels, and farms.
Key Features
- Power Options: Available in 200-250W and 400-500W configurations
- Compact Design: 200-250W: 442×290×121mm | 400-500W: 552×441×121mm
- High Efficiency: 150-155 lumens per watt performance
- Weather Resistant: IP66 waterproof rating for harsh conditions
- Customizable: Multiple power options and beam angles available
Technical Specifications
| Parameter | 200-250W | 400-500W |
|---|---|---|
| Model | RFFL-16 | |
| Power | 200-250W | 400-500W |
| Size (mm) | 442×290×121 | 552×441×121 |
| Material | Aluminum + PC | |
| Driver | AC100-270V | |
| Light Source | SMD2835/3030 | |
| IP Rating | IP66 | |
| Light Efficiency | 150-155 lm/w | |
| Beam Angle | T1,T2,T3,30°,60°,90° | |
| Application | Basketball Court, Stadium, Tunnel, Farm | |
Product Details
- Famous LED Driver MEANWELL/INVENTRONICS for stable performance
- Die-casting aluminum heatsink with 96w/m.k thermal efficiency
- Highly thermal conductive aluminum PCB for lower LED temperatures
- 2835/3030/5050/7070 SMD light source options
- Strong iron bracket construction
- Waterproof silica gel sealing
- High temperature resistant optical PC lens with UV-proof design
- High-quality tempered glass protection
- Eaves design to prevent light scatter and reduce uplight pollution
