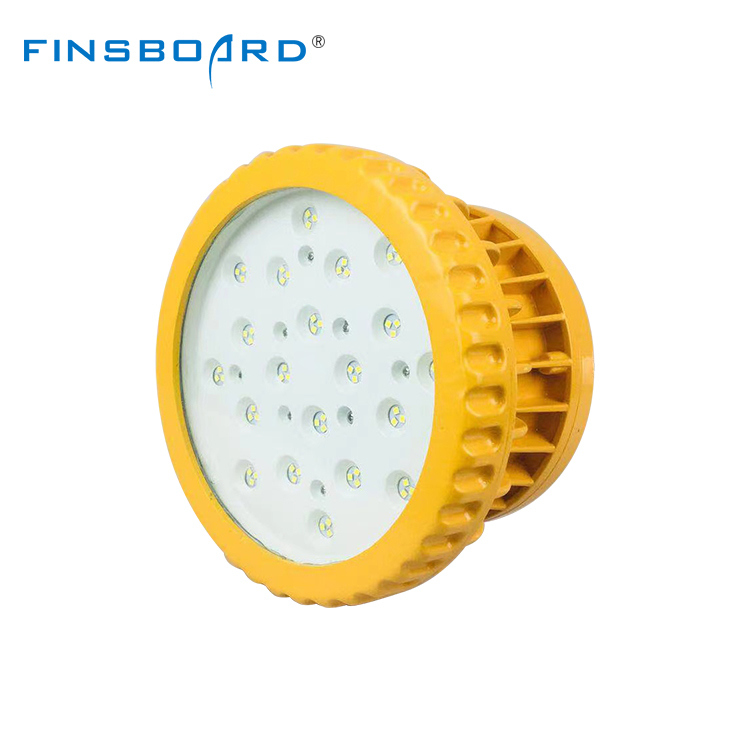

Flame Proof Light 100W 150W 200W 300W Ceiling Mount IP65 Explosion Proof High Bay Led Lighting
Product Details:
| Place of Origin: | Chinese Mainland |
| Brand Name: | Finboard |
| Certification: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box package+ bubble or as customized |
| Delivery Time: | 25-30days or confirm |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Product Name: | Industrial Explosion Proof Lighting | Led: | SMD 3030/2835 |
|---|---|---|---|
| Light Efficiency: | 100-120lm/w | Material: | Aluminum+ PC Lens |
| Voltage: | AC85-265V | Guarantee: | 3/5 Years |
| Explosion-proof Signs: | Exde ⅡC T6 Gb/Ex TD A21 IP65 T80℃ | Waterproof: | IP65 |
| Beam Angle: | 120° | Anti-corrosion Grade: | WF2 |
| Highlight: | explosion proof LED high bay light,flame proof ceiling mount light IP65,300W explosion proof LED lighting |
||
Product Description
Flame Proof Light 100W 150W 200W 300W Ceiling Mount IP65 Explosion Proof High Bay Led Lighting
IP65 Waterproof Hazardous Location Lighting 30W-150W LED Explosion Proof Light
Products Description: This series of LED Explosion Proof Lights is designed with an IP65 rating for effective waterproof and dustproof performance in harsh environments. Certified with Exd IIC T6 explosion-proof standard, it ensures safe operation in hazardous locations. The light is available in multiple power options including 30W, 60W, 70W, 100W, 120W, and 150W to meet various illumination needs.
Our Explosion Proof LED Floodlight features a robust die-cast aluminum alloy housing with a high-pressure electrostatic spray coating, offering excellent corrosion resistance. The III cavity separation structure effectively isolates the light source, power supply, and wiring, enhancing safety and reliability. With a professional secondary optical system and tempered glass lens, it provides uniform and comfortable lighting. The built-in constant current and voltage power supply ensures stable performance with a high power factor of over 0.95.
| Specification | Details |
|---|---|
| Ex Marking | II 2GD Ex d e IIC T6 Gb/DIP A21 TA, T6 |
| Classification | Group II, Category 2 GD; Class I, Division 1 and 2, Group A,B,C,D |
| IP Degree | IP65 |
| Corrosion Resistant | WF2 |
| Input Voltage | AC85-265v |
| Wattage | 50w-400w |
| Diameter | Φ200*270mm / φ255*285mm / φ320*310mm |
| Conduit Entries | G 3/4" |
| Mounting Styles | Bracket, ceiling, pendent |
| Weight | 3kg |
Key Features
- The explosion proof LED light source cavity is made up of multiple LED beads with a long service life and high luminous efficiency; the use of nano-reflective cups greatly improves the efficiency of the luminaire, with higher luminous efficiency.
- Industrial LED light explosion proof exposed fasteners are all made of stainless steel screws, which are highly resistant to corrosion and never rust.
- Explosion-proof lights can be fitted with emergency devices on request, automatically switching to emergency lighting when the power supply is cut off.
- Explosion Proof light 50W-240W tempered glass is available in either frosted or clear versions. Flat and convex glass options.
Installation Options
Ceiling-mounted, boom-mounted, wall-mounted, parapet-mounted, bent-pole-mounted and other installation options are available.
Applications
Used where destruction, damage and explosion may occur. Refineries, fuel storage, remote locations, oil exploration, oil refining, chemical industry, military and other dangerous environments and offshore oil platforms, oil tankers, etc.
