IP66 Waterproof Outdoor LED Street Light with SMD 2835 LED Chip and 50,000 Hours Lifespan
Product Details:
| Place of Origin: | Chinese Mainland |
| Brand Name: | Fins board, BOCAQ |
| Certification: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| Model Number: | LST |
|
Detail Information |
|||
| Item Type: | Outdoor Street Light | Input Voltage(V): | AC110/240V |
|---|---|---|---|
| Ip Rating: | IP66 | Lamp Body Material: | Die-casting Aluminum |
| Lamp Luminous Efficiency(lm/w): | 125lm/w | Light Source: | SMD 2835 |
| Warranty: | -80 | Color Temperature: | 3000-6500K |
| Beam Angle: | 70*140° | Usage: | Highway,Garden,Road,Street,Courtyard,Community,etc. |
| Highlight: | IP66 Outdoor Led Street Light,SMD 2835 Outdoor Led Street Light,SMD 3030 Outdoor Led Street Light |
||
Product Description
IP66 Outdoor LED Street Light with SMD 3030/SMD 2835 Technology
High-performance outdoor LED street lighting solution designed for durability, energy efficiency, and superior illumination across various applications.
Key Features
- IP66 Protection: Complete dustproof (6-level) and resistant to low-pressure water jets from any direction, ensuring reliable operation in outdoor environments
- SMD 3030/SMD 2835 LED Chips: High-brightness chips suitable for demanding lighting applications including street lighting and advertising signage
- Wide Temperature Range: Operates from -40°C to 60°C, maintaining performance in extreme climate conditions
- Long Service Life: 50,000+ hours lifespan for reduced maintenance costs and long-term reliability
- Automatic Operation: Optional light control sensors enable automatic on/off functionality based on ambient light levels
- High Brightness Output: Up to 7,500lm with 120° wide-angle lighting and color temperature range of 3000-6500K
- Energy Efficient: Advanced LED technology delivers superior energy savings compared to traditional lighting methods
- Corrosion-Resistant Construction: Die-cast aluminum housing with anti-corrosion powder coating for enhanced durability
- Easy Installation: Adjustable mounting brackets and comprehensive accessories simplify setup process
Technical Specifications
| Model | LST Series | ||||
|---|---|---|---|---|---|

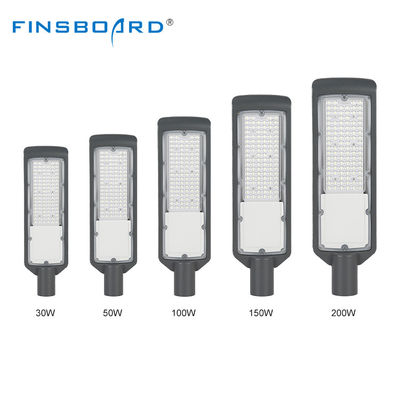

| Power (W) | 30W | 50W | 100W | 150W | 200W |
| Product Size (mm) | 350*110*55 | 410*120*55 | 475*140*65 | 585*160*75 | 685*175*75 |
| Beam Angle | 70*140° | ||||
| Light Source | SMD 2835 | ||||
| IP Rating | IP65 / IP66 | ||||
| Warranty | 2 Years | ||||
| Power Factor | ≥0.9 | ||||
| Certification | CE, RoHS | ||||
| CCT | 3000K-6500K | ||||
| Input Voltage | AC85-265V | ||||
| Luminous Efficacy | 125 lm/W | ||||
| Material | Die-casting Aluminum | ||||
Applications
Highways, Gardens, Roads, Streets, Courtyards, Communities, and various outdoor lighting scenarios
Important Note: While IP65/IP66 rated devices provide excellent dust resistance and protection against low-pressure water jets, they are not designed for immersion in water. Additional protection measures may be required during extreme weather conditions such as storms or floods. The IP rating does not include protection against specific liquids like seawater or chemical solvents.
