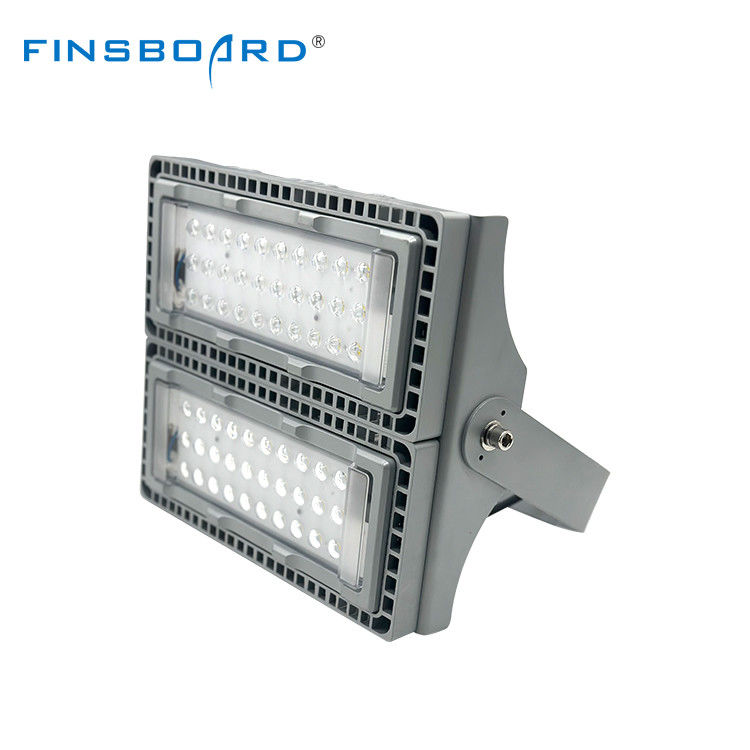

High Brightness LED Modular Flood Light with IP66 Waterproof and 50000H Long Life for Industrial Lighting
Product Details:
| Place of Origin: | Chinese Mainland |
| Brand Name: | Fins board, BOCAQ |
| Certification: | CE,ROHS,FCC,CCC, ISO9001,BSCI |
| Model Number: | 9280 |
|
Detail Information |
|||
| Features: | Waterproof \ Anti-rust\ Anti Erosion | Other Name: | LED Modular Flood Light |
|---|---|---|---|
| Material: | Aluminum+ Tempered Glass | Cri: | >80 |
| Ingress Protection: | IP66 | Working Life: | ≥50000H |
| Led Chip: | SMD2835 | Power Factor: | ≥0.95 |
| Frequency: | 50/60Hz | ||
| Highlight: | 100W LED Modular Flood Light,1000W LED Modular Flood Light,High Brightness LED Modular Flood Light |
||
Product Description
LED Modular Flood Light with High Brightness Chip (100W to 1000W)
This LED high-brightness waterproof floodlight combines premium light source quality, rapid heat dissipation, and all-weather protection. Designed as an ideal solution for industrial lighting applications, it creates safer, more reliable production environments while enhancing overall operational efficiency.
Fast and Efficient Cooling with IP65 Protection

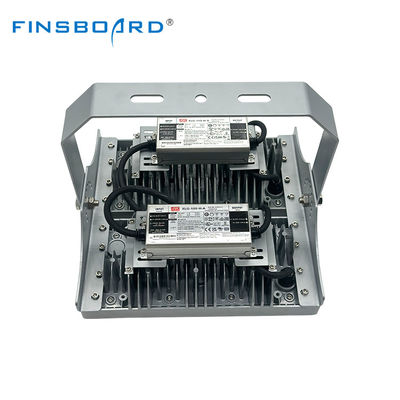

The modular LED flood light features a professional aluminum alloy heat dissipation design that rapidly and effectively dissipates heat generated by the LEDs. With IP65 protection rating, it maintains normal operation even when exposed to harsh conditions including water immersion and dust.
High-Quality LED Light Source with Extended Service Life
Utilizing high-quality, high-brightness LED chips with exceptional luminous performance, this floodlight delivers a service life of up to 50,000 hours. It ensures continuous, stable lighting output even in demanding high-temperature and high-humidity environments.
Customized Design to Meet Specific Requirements
This modular floodlight supports customized manufacturing. Lighting power, beam angle, and installation methods can all be flexibly adjusted according to actual application scenarios to comprehensively meet customer needs.
High Quality Optical Effects with Energy Efficiency
The professional optical system design efficiently focuses and regulates LED light source luminescence, providing uniform brightness and comfortable visual effects. Mercury-free and environmentally friendly, it aligns with sustainable development principles.
Technical Specifications
| Model | LED Power | Size (mm) | Material | Input Voltage |
|---|---|---|---|---|
| 9280 | 100W | 300*230*110 | Aluminum+PC | AC100-270V |
| - | 200W | 300*335*125 | Aluminum+PC | AC100-270V |
| - | 300W | 300*450*125 | Aluminum+PC | AC100-270V |
| - | 400W | 610*335*125 | Aluminum+PC | AC100-270V |
| - | 600W | 610*415*125 | Aluminum+PC | AC100-270V |
| - | 1000W | 610*553*125 | Aluminum+PC | AC100-270V |
Additional Specifications
| Parameter | Specification |
|---|---|
| Driver | AC100-270V |
| Light Source | SMD2835/3030 |
| IP Rating | IP66 |
| Color Temperature | 3000-6500K |
| Beam Angle | 90° |
| Application | Basketball Courts, Stadiums, Tunnels, Farms |
