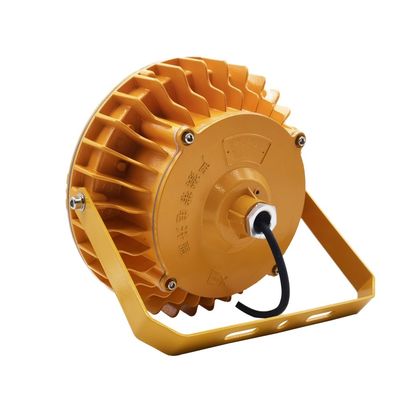

100W LED Explosion Proof High Bay Light with IP66 Rating and Tempered Glass Lens for Hazardous Areas
Product Details:
| Place of Origin: | Chinese Mainland |
| Brand Name: | Fins board, BOCAQ |
| Certification: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box package+ bubble or as customized |
| Delivery Time: | 25-30days or confirm |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Lens Material: | Tempered Glass | Light Source: | LED |
|---|---|---|---|
| Operating Temperature: | -40°C To 60°C | Use: | Factories |
| Housing Material: | Aluminum Alloy | Ip Rating: | IP66 |
| Color Temperature: | 5000K | Anticorrosion Grade: | WF2 |
| Cri: | >80 | Optional: | PC Cover / Toughened Glass |
| Installation Height: | 4m～8m | ||
| Highlight: | 100w LED Explosion Proof Lighting,10000Lm LED Explosion Proof Lighting,100w led explosion proof lamps |
||
Product Description
100W LED Explosion Proof High Bay Light
100W LED Explosion Proof Lighting Lamps - 10,000LM OEM
Structural Properties
- Designed and manufactured in strict compliance with explosion-proof requirements for safe, reliable operation in hazardous environments
- High-quality aluminum alloy die-cast housing with high-pressure electrostatic spraying and sealing for corrosion resistance WF2
- Toughened glass construction passes rigorous impact and heat resistance testing
- Silicone rubber sealing rings provide excellent high-temperature and aging resistance IP65
- Multiple LED lamp beads with nano-reflective cups for high luminous efficiency and extended service life
- Stainless steel fasteners ensure corrosion resistance and durability
- Multiple installation options: ceiling, suspension rod, wall-mounted, guardrail, and bent rod types
- Optional emergency devices for automatic backup lighting during power outages
- Toughened glass available in frosted or transparent options
Application Scope
- Suitable for explosive gas mixtures in temperature groups T1 to T6
- Hazardous areas with explosive gas mixtures: Zone 1 and Zone 2
- Combustible dust environments: Zone 21 and Zone 22
- Compatible with Class IIA, IIB, and IIC explosive gas mixtures
- Ideal for fixed lighting in chemical plants, warehouses, power plants, paint shops, boiler rooms, gas stations, and tank farms
Technical Specifications
| Light Source Type | LED Light Source | Light Source Technology | SMD Patch Type |
|---|---|---|---|
| Enclosure Rating | IP65 | Shell Anti-Corrosion Grade | WF2 |
| Power Factor | ≥0.95 | Power Efficiency | ≥0.88 |
| Inlet Specification | G3/4°(φ6~φ12mm) | Color Temperature | 5500K～6500K |
| Dimensions | Dia260*125mm / Dia300*130mm | Lamp Weight | 3.9Kg / 5.8Kg |
| Recommended Installation Height | 4m～8m | Recommended Installation Distance | 3m～6m |
| Explosion-Proof Mark: Exde ⅡCT6 Gb/Ex tD A21 IP65 T80℃ | |||
| Installation Method: Ceiling mounted, boom mounted, wall mounted (30°/90°), guardrail mounted, flange mounted | |||
Product Images

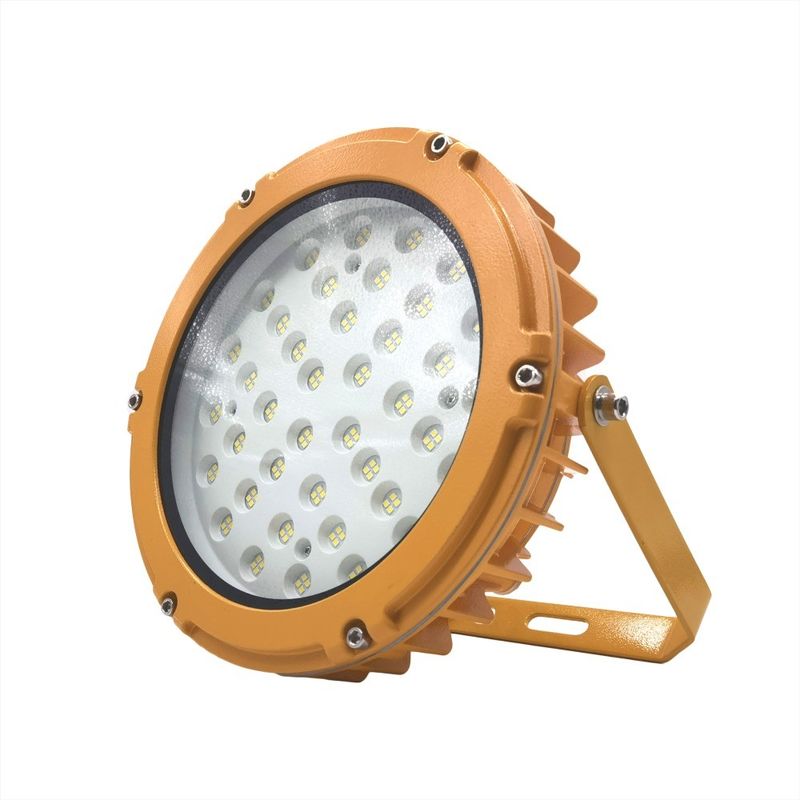

Front View
Technical Diagram
Installation Examples
