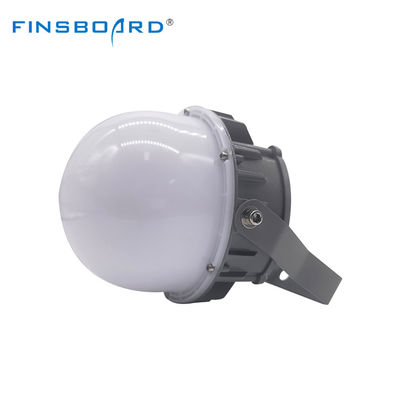

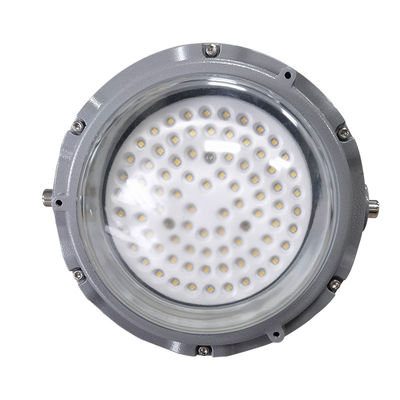

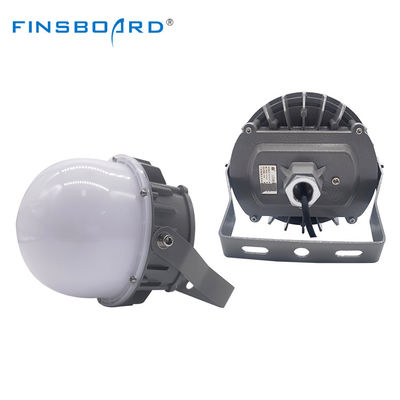

Energy Saving IP65 Protection LED Explosion Proof Lighting with 50000H Life Span for Hazardous Areas
Product Details:
| Place of Origin: | Chinese Mainland |
| Brand Name: | Fins board, BOCAQ |
| Certification: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| Model Number: | SMSF50-B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box package+ bubble or as customized |
| Delivery Time: | 25-30days or confirm |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Keywords: | LED Railway Platform Lighting | Power Factor: | ≥0.95 |
|---|---|---|---|
| Luminous Flux: | 3900-7800lm | Protection Level: | IP65 |
| Color Temperature: | 2700-6500K | Color Rendering Index: | 80Ra |
| Working Life: | ≥50000H | Executive Standards: | GB7000,GB 24906,GB/T 24907 Etc. |
| Highlight: | ODM flameproof light fittings,Hazardous flameproof light fittings,Flameproof hazardous light |
||
Product Description
Energy Saving Flameproof Light Fittings Hazardous Light ODM
Product Structure & Performance
- High-strength aluminum alloy die-cast housing with high-voltage electrostatic powder coating for superior corrosion resistance
- Premium LED light source with high luminous efficiency, excellent color rendering, compact design, low energy consumption, flicker-free operation, long service life, and maintenance-free operation
- Scientific light distribution design with 380° full-range illumination, uniform lighting distribution, and glare-free soft light to prevent operator eye strain
- Independent light source chamber design with optimal heat dissipation to extend LED lifespan
- Integrated construction for easy installation and maintenance with simplified wiring
- Modular design for light source components, reflectors, and power modules for easy replacement and reduced maintenance costs
- Advanced sealing structure with specialized sealing strips and embedded methods for excellent waterproof and dustproof performance in harsh environments
- Sleek appearance with ceiling and suspended mounting options for versatile installation
Application Scope
Ideal for flood lighting applications in railways, power plants, metallurgy, petroleum, petrochemical industries, factories, workshops, stations, large facilities, and venues. Features include glare-free operation, no ghosting, shock resistance, corrosion resistance, energy efficiency, and reliable safety performance.
Ordering Information
- Select products according to model specifications when ordering
- Lights are factory-equipped with power supply and light source
- Available with various mounting configurations
- Rated voltage: AC220/50Hz - use only at specified voltage
- Standard color temperature: 5500K-6500K
- Specify any custom requirements for items 3, 4, and 5 during ordering
Technical Specifications
| Product Number | SMSF50-B |
| Executive Standards | GB7000, GB 24906, GB/T 24907, GB/T 24908 |
| Electromagnetic Compatibility | EN61000-3-2, TUV EN61347-1, EN61347-2-13 |
| Rated Power | 30-60W |
| Degree of Protection | IP65 |
| Anti-Corrosion Grade | WF2 |
| Inlet Thread | G3/4" |
| Incoming Cable | φ7-12mm |
| Operating Temperature | -40°C to 45°C |
| Operating Humidity | 10%-90% |
| Power Factor | ≥0.95 |
| Power Efficiency | ≥0.88 |
| Dimensions | φ225*195mm |
| Net Weight | 1.41kg |
| Color Temperature Options | Warm White (WW) 2700-3200K Natural White (NW) 4000-4500K Positive White (PW) 6000-6500K |
| Color Rendering Index | 80Ra |
| Luminous Flux | 3900-7800lm |
| Life Span | ≥50,000 hours |
