IP65 Rated Explosion Proof Linear Light with 50W-200W Power Options for Chemical Industry Hazardous Locations
Product Details:
| Place of Origin: | Chinese Mainland |
| Brand Name: | Fins board, BOCAQ |
| Certification: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| Model Number: | RFEPL-8411 |
|
Detail Information |
|||
| Name: | Industrial ATEX Led Explosion Proof Line | Usage: | Industrial Gas Station, Mine |
|---|---|---|---|
| Lamp Luminous Efficiency(lm/w): | 210lm/w | Specification: | Ip65 |
| Working Temperature(℃): | -40 - 50 | Feature: | Outdoor Hazardous Location |
| Power: | 50w 100w 150w 200w | Applications:: | Chemical Industry Hazardous Location |
| Highlight: | Hazardous Location Linear Light 50w,Hazardous Location Linear Light 150w,Ip65 Linear Light |
||
Product Description

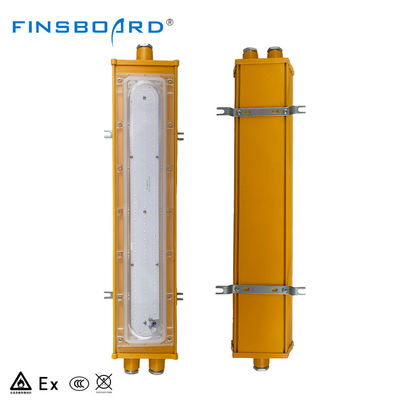

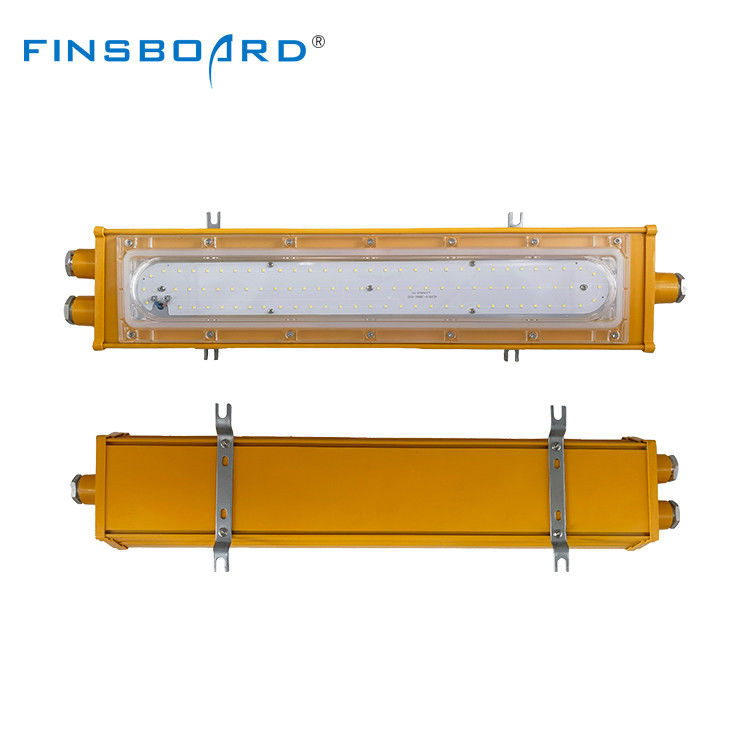

Chemical Industry Hazardous Location Lighting IP65 Linear Light
Professional explosion-proof linear lighting solution designed for hazardous environments in chemical processing, oil and gas facilities, and other explosive atmosphere locations.
Safety & Protection Features
- Robust Safety Protection with ATEX/IECEx Certification for Zone 1/2 hazardous areas
- IP65 Rated - Fully dustproof and waterproof, resistant to chemical splashes and high-pressure washdown
- Heavy-duty aluminum housing with tempered glass for impact and corrosion resistance
- Vibration and shock resistant construction for high-activity industrial zones
High-Performance Lighting
- Multiple Power Options: 50W, 100W, 150W, 200W models available
- SMD2835 LED Technology with 100-110 lm/W efficiency
- High Color Rendering Index (≥80 CRI) for accurate color representation
- 5500-6500K cool white light ideal for precision tasks in chemical plants
Industrial-Grade Durability
- Wide Voltage Input: AC90-285V for stable operation despite power fluctuations
- Advanced thermal management design extends lifespan to 50,000+ hours
- Corrosion-resistant construction suitable for harsh chemical environments
Technical Specifications
| Model | LED Power | Dimensions (mm) | Material | Input Voltage |
|---|---|---|---|---|
| BAD8411 | 50W | 670*133*66 | Aluminum + Tempered Glass | AC90-285V |
| BAD8411 | 100W | 1240*133*66 | Aluminum + Tempered Glass | AC90-285V |
Additional Specifications:
Light Source: SMD2835
IP Rating: IP65
CRI: Ra80
Color Temperature: 5500-6500K
Light Efficiency: 100-110lm/w
Light Source: SMD2835
IP Rating: IP65
CRI: Ra80
Color Temperature: 5500-6500K
Light Efficiency: 100-110lm/w
Designed For Applications
Specifically engineered for hazardous locations and explosive atmosphere environments:
Chemical Processing Plants
Oil & Gas Facilities
Fueling Stations
Industrial Zone Lighting
Explosive Atmosphere Environments
