Outdoor Waterproof IP66 LED Stadium Lighting with Modular Structure and High-Brightness LED for Basketball Courts
Product Details:
| Place of Origin: | Chinese Mainland |
| Brand Name: | Fins board, BOCAQ |
| Certification: | CE,ROHS,FCC,PSE,CCC,UL,ISO9001,BSCI |
| Model Number: | RFFL-04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box package+ bubble or as customized |
| Delivery Time: | 25-30days or confirm |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Name: | Stadium Led Module Flood Light | Lens: | PC Optical Lens |
|---|---|---|---|
| Power Source: | Electric | Chip: | 2835/3030 Lamp Bead |
| Protection Level: | IP 66 | Warranty: | 5 Years |
| Cri: | Ra>80 | Color Temperature: | 3000K/4000K/5000K/5700K |
| Dimming: | Non-dimming | Mounting Type: | Bracket Mount |
| Highlight: | Outdoor Waterproof Led Module Flood Light,150w Led Module Flood Light |
||
Product Description
Outdoor Waterproof Basketball Stadium LED Module Flood Light
This outdoor waterproof LED modular floodlight is specifically engineered for large venues such as basketball courts. Featuring a modular structure, it offers flexible power output selection from 50W to 400W to meet diverse lighting requirements. Ideal for stadiums, training halls, and surrounding areas, it delivers exceptional lighting performance.
Product Features
- Waterproof & Dustproof Design: IP65 protection rating effectively resists rain, dust, and harsh environmental conditions for reliable long-term operation
- Efficient Heat Dissipation System: Aluminum alloy body with professional heat pipe design rapidly dissipates heat to extend LED lifespan
- High-Quality Optical Performance: High-reflectivity PC reflective cup and condenser lens provide concentrated, even light distribution without dark areas or glare
- High-Brightness LED Source: Premium LED chips deliver excellent luminous performance and superior color rendering for optimal visual experience
- Energy-Efficient Design: High power conversion efficiency significantly reduces energy consumption and carbon emissions
Application Scenarios
This LED modular floodlight is primarily used in large outdoor sports venues including basketball courts, training halls, and sports centers. Its excellent protective performance withstands severe weather conditions while the advanced optical design creates uniform, bright lighting that enhances the stadium experience. Multiple power options provide flexible adaptation to venues of various sizes.
Technical Specifications
| Model | RFFL-04 |
|---|---|

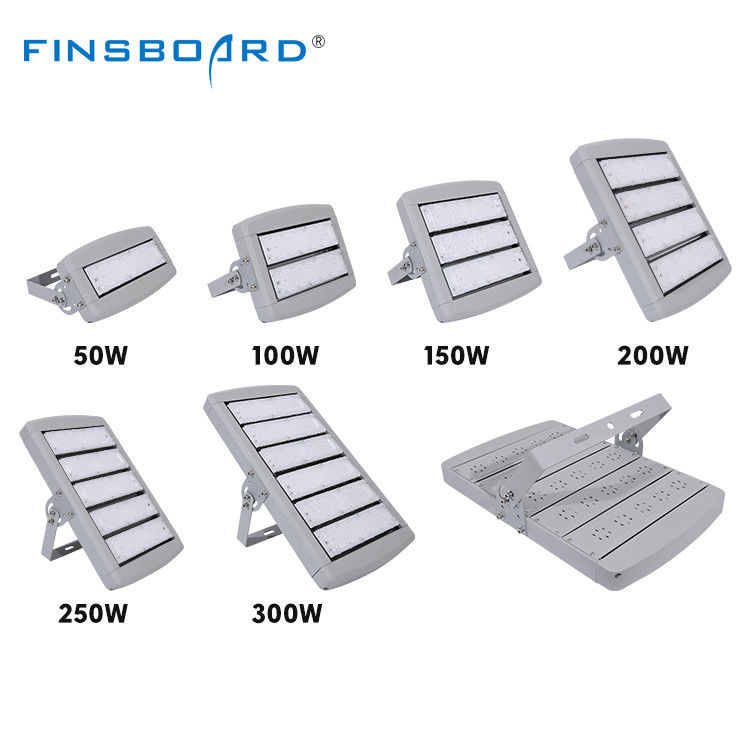

| Power Options | 50W | 100W | 150W | 200W | 250W | 300W | 400W |
| Material | Aluminum + Clear PC |
| Dimensions (mm) | 163*350*130 | 246*350*130 | 329*350*130 | 412*350*130 | 495*350*130 | 578*350*130 | 744*350*130 |
| Driver | AC85-265V |
| Light Source | SMD 3030 |
| IP Rating | IP65 |
| Color Temperature | 2700-6500K |
| Beam Angle | 60°/151*81° |
| Applications | Basketball Courts / Stadiums / Tunnels / Farms |
