IP66 LED Explosion Proof Lighting with AC85-265V Driver and ≥50000H Working Life for Hazardous Locations
Product Details:
| Place of Origin: | Chinese Mainland |
| Brand Name: | Fins board, BOCAQ |
| Certification: | CE,ROHS,FCC,CCC, ISO9001,BSCI |
| Model Number: | RFEPL97 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box package+ bubble or as customized |
| Delivery Time: | 25-30days or confirm |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Working Life: | ≥50000H | Luminous Flux: | 6500-31200lm |
|---|---|---|---|
| Driver: | AC85-265V | Operating Temperature: | -40°C To 60°C |
| Power Factor: | ≥0.95 | Finish: | Yellow/grey |
| Ip Rating: | IP66 | Keypoints: | Explosion Proof Lighting Fixture |
| Ingress Protection Rating: | IP66 | Cri: | >80 |
| Light Efficiency: | 100-110lm/w | Frequency: | 50/60Hz |
| Highlight: | IP66 Explosion Proof Lighting Fixtures,AC85-265V Explosion Proof Lighting Fixtures,Energy Efficiency Explosion Proof Lighting Fixtures |
||
Product Description
AC85-265V IP66 Explosion Proof Lighting Fixtures
LED tunnel explosion-proof lights provide safe and reliable lighting solutions for hazardous environments with excellent performance. These high-efficiency LED fixtures deliver exceptional brightness and reliable illumination in underground mines and other challenging locations.
Premium Construction & Materials
Manufactured from robust materials including aluminum alloy or stainless steel, these lamps are specifically engineered for explosive environments and built to withstand harsh operating conditions.
Key Features
- Aluminum alloy shell with high-voltage electrostatic spraying for superior durability
- Stainless steel fasteners with excellent corrosion resistance
- Tempered glass lens resistant to 4J high-energy impact
- 90% light transmittance for optimal lighting efficiency
Professional Explosion-Proof Design
Multiple explosion-proof measures including explosion-proof wiring and explosion-proof shell ensure safe and reliable operation in explosive environments. Optimized optical design provides excellent lighting uniformity and high light efficiency.
Intelligent Power Supply System
Professional power supply with wide voltage input and constant power output, integrated over-current and open-circuit protection, power factor up to 0.98 with outstanding energy efficiency.
Technical Specifications
| Product Model | RFEPL97 |
|---|---|
| Explosion Proof Sign | Exde IICT6 Gb |
| Rated Power | 50-70W | 80-150W | 150-240W |
| Protection Level | IP66 |
| Corrosion Protection Level | WF2 |
| Inlet Thread | G3/4" |
| Incoming Cable | φ7-12mm |
| Work Environment | Temperature: -40~45 ℃ Humidity: 10% -90% |
| Power Factor | ≥0.95 |
| Overall Dimensions | 250*170*150 | 320*225*220 | 460*310*230 |
| Net Weight | 3.35kg | 6kg | 11.5kg |
| Color Temperature | 2700-6500K |
| Color Rendering Index | 80Ra |
| Luminous Flux | 6500-31200lm |
| Working Life | ≥50000H |

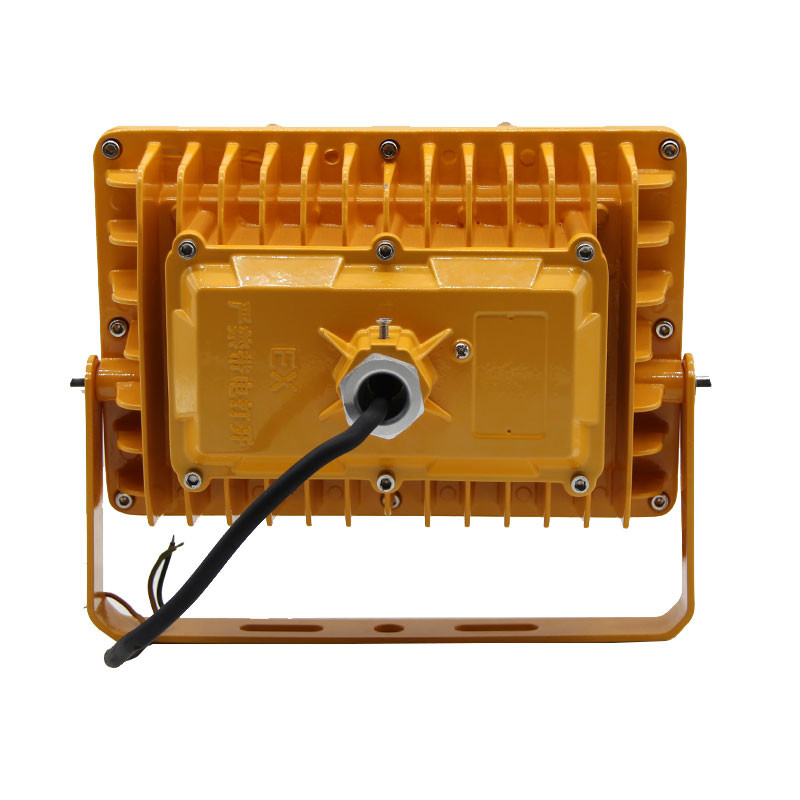

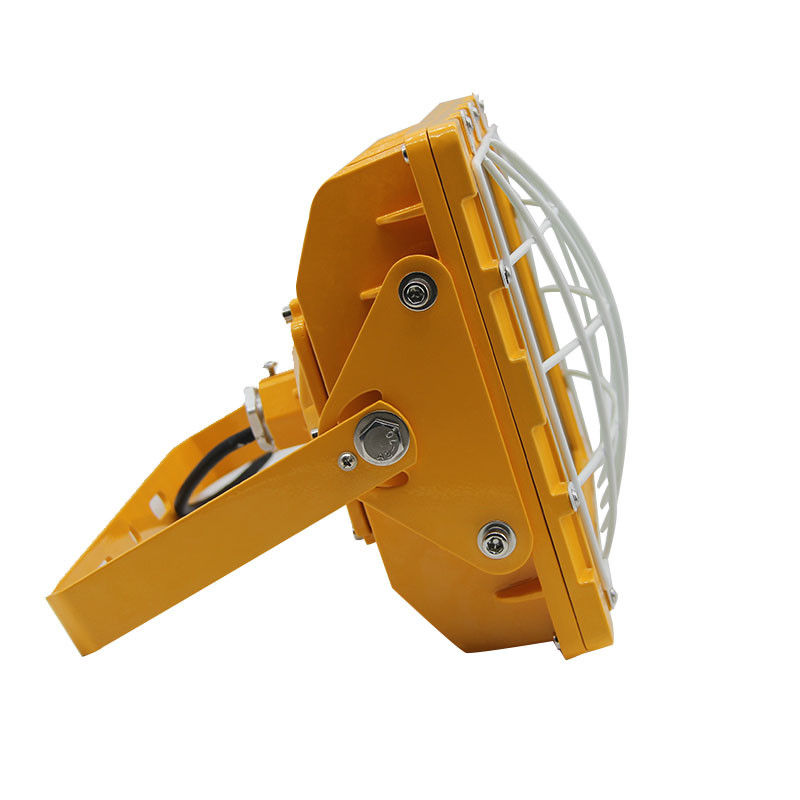

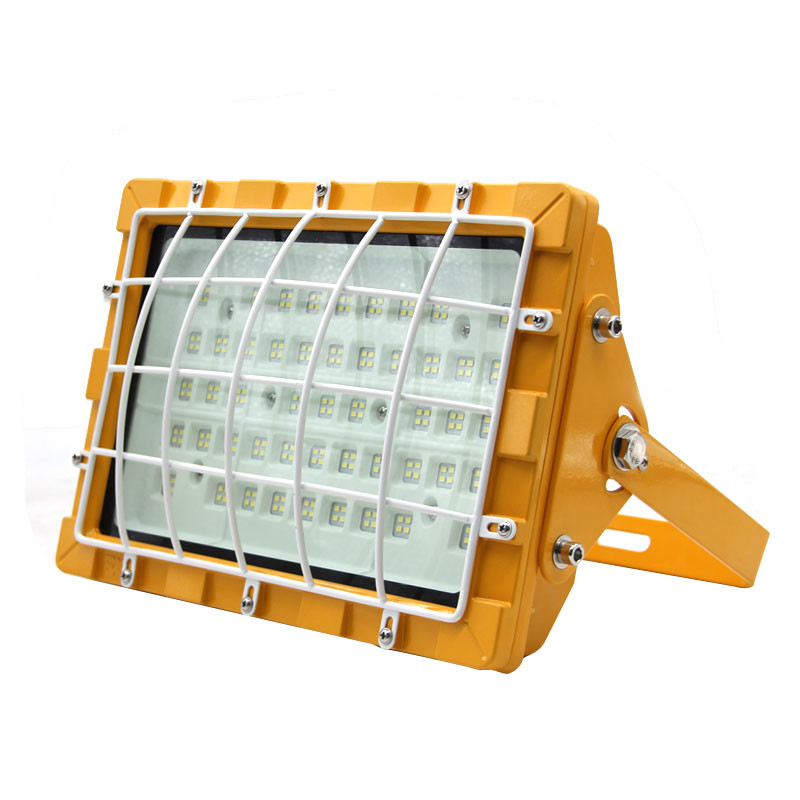

Product Images
