LED mining and chemical explosion-proof lamps have many advantages, such as excellent explosion-proof performance, outstanding lighting effects, and reliable power supply systems. They have undoubtedly become the benchmark products for hazardous environment lighting. It will surely provide safer and more stable lighting solutions for related industries and lead the technological progress in this field. As a leading product in this field, LED mining explosion-proof lamps have become an ideal choice for hazardous environment lighting with their outstanding technical characteristics.

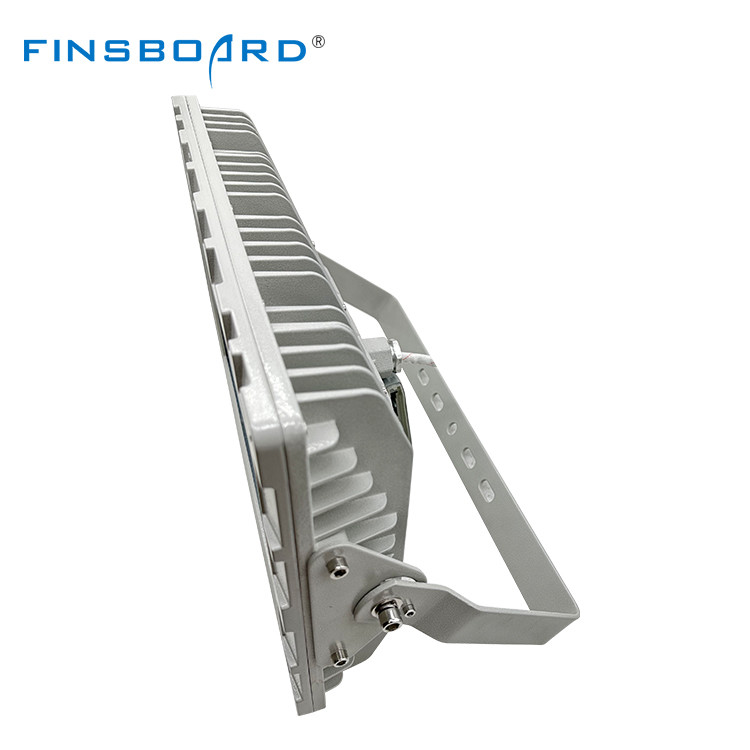

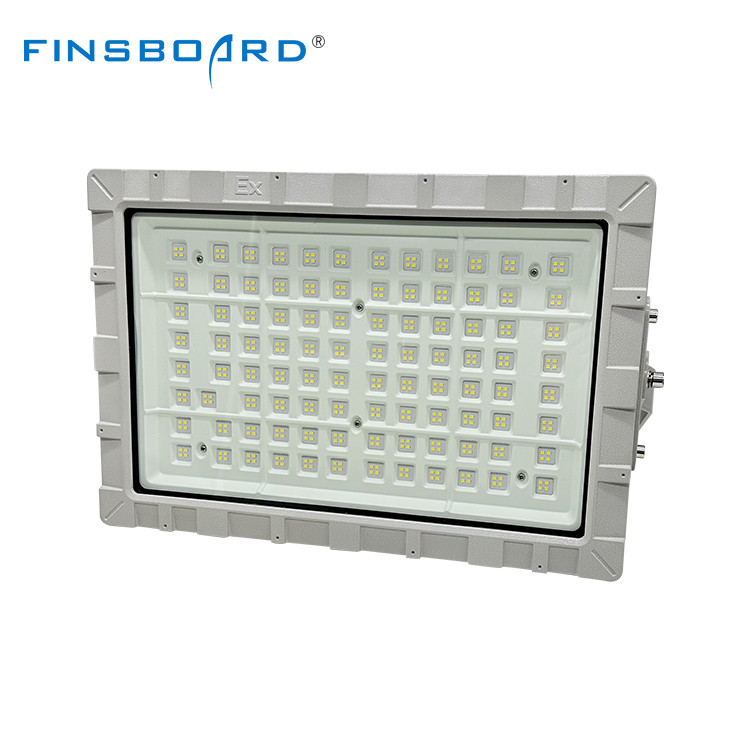

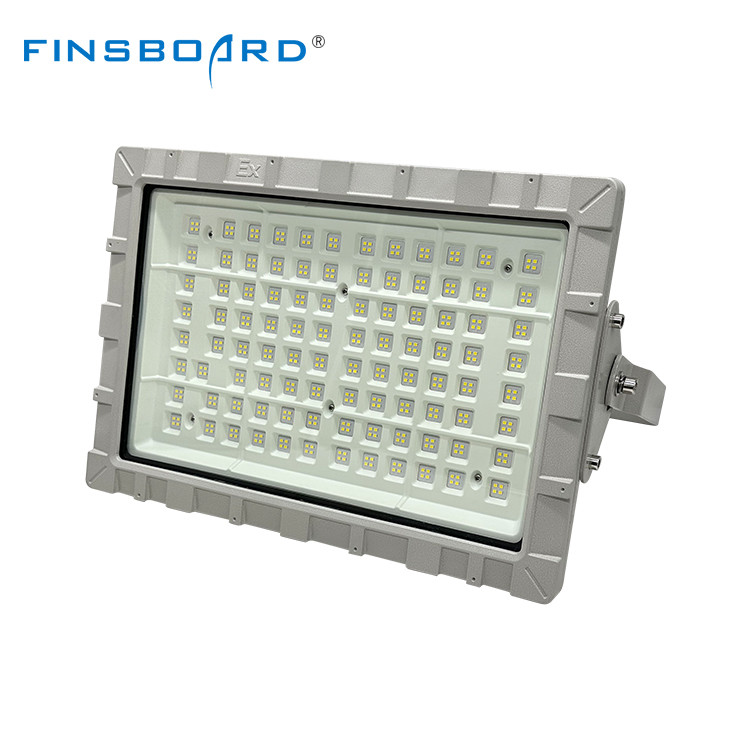

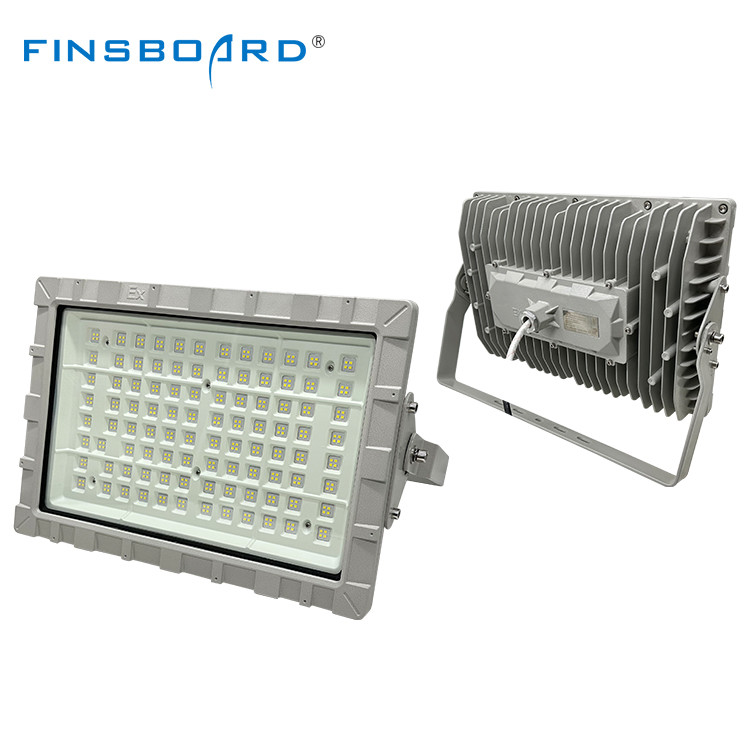

The lamp adopts an aluminum alloy die-cast shell and is treated with high-voltage electrostatic spraying to ensure excellent corrosion resistance. The high borosilicate tempered glass lens has excellent impact resistance and heat resistance, and the light transmittance is as high as 90%. Professional explosion-proof design, including explosion-proof wiring, flameproof joints, etc., ensures that it can work reliably in explosive gas environments.
The carefully designed optical system achieves high light efficiency and reasonable light distribution, ensuring uniform light in the lighting area. The professional internal protection structure design ensures normal operation in harsh environments. This lamp is suitable for dry explosion environments in Zones 1 and 2, and combustible dust environments in Zones 21 and 22, and is widely used in hazardous places such as petroleum, chemical, and electric power.
It adopts professional constant current and constant voltage power supply design, with characteristics such as wide voltage input and constant power output, and has safety protection functions such as overcurrent and open circuit protection. The power factor is as high as 0.98 or above, and the energy consumption performance is excellent. In addition, an emergency power supply device can be optionally equipped to automatically provide emergency lighting when the main power supply is cut off.
Product Model | RFEPL97 | ||
Explosion Proof Sign | Exde IICT6 Gb | ||
Rated Power | 50-70W | 80-150W | 150-240W |
Protection Level | IP65 IP66 | ||
Corrosion Protection Level | WF2 | ||
Inlet Thread | G3/4" | ||
Incoming Cable | φ7-12mm | ||
Work Environment | Temperature: -40~45 ℃ | ||
Power Factor | ≥0.95 | ||
Overall Dimensions | 250*170*150 | 320*225*220 | 460*310*230 |
Net Weight | 3.35kg | 6kg | 11.5kg |
Color Temperature | 2700-6500K | ||
Color Rendering Index | 80Ra | ||
Luminous Flux | 6500-31200lm | ||
Working Life | ≥50000H | ||
