In places with explosion risks such as mines and chemical industries, safe and reliable lighting equipment is essential. As a professional explosion-proof lighting product, LED mining explosion-proof lamps have become an ideal choice for lighting in hazardous environments with their excellent performance characteristics.

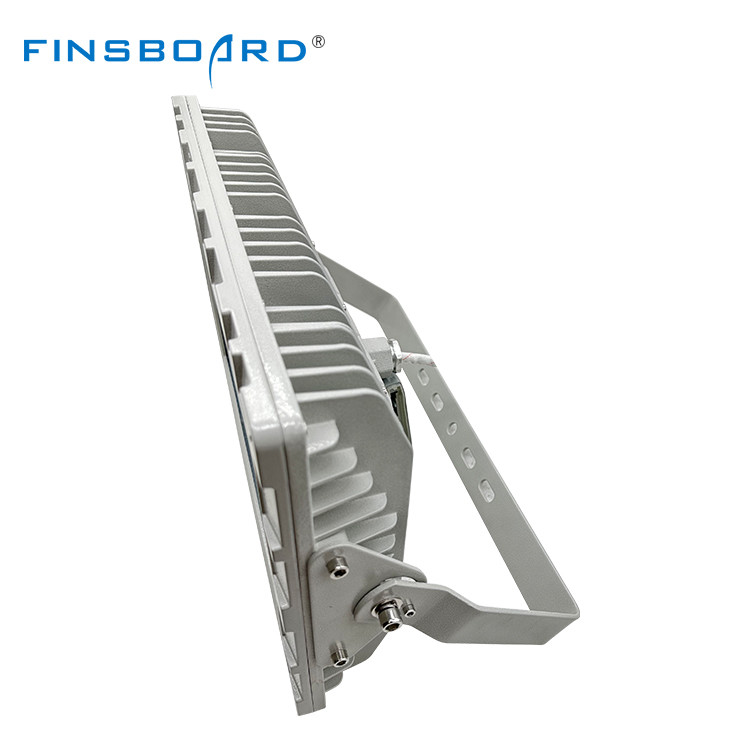

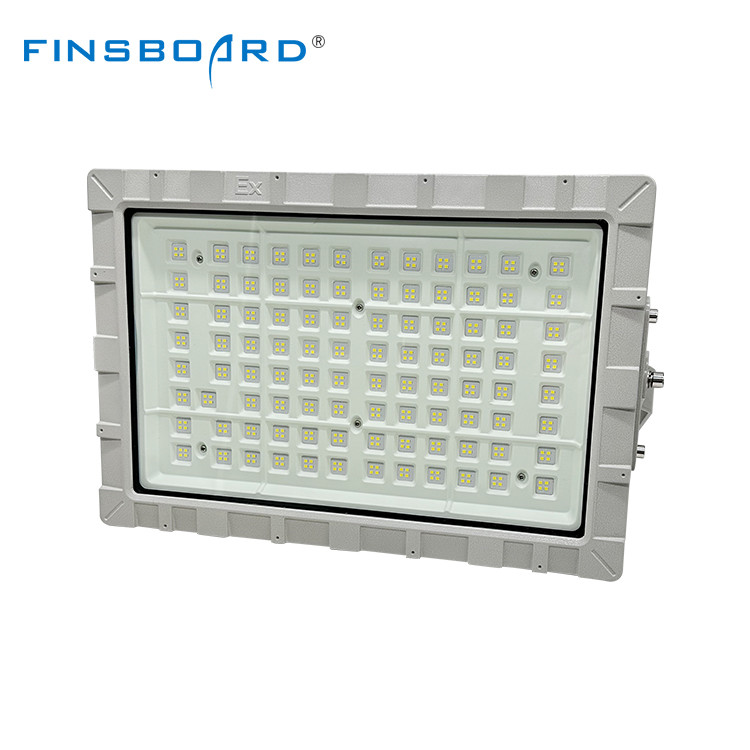

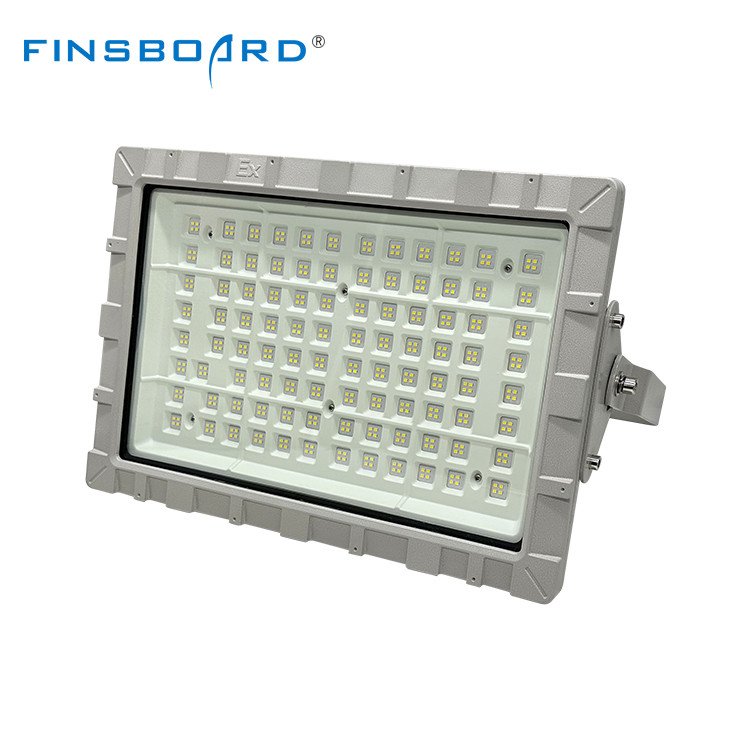

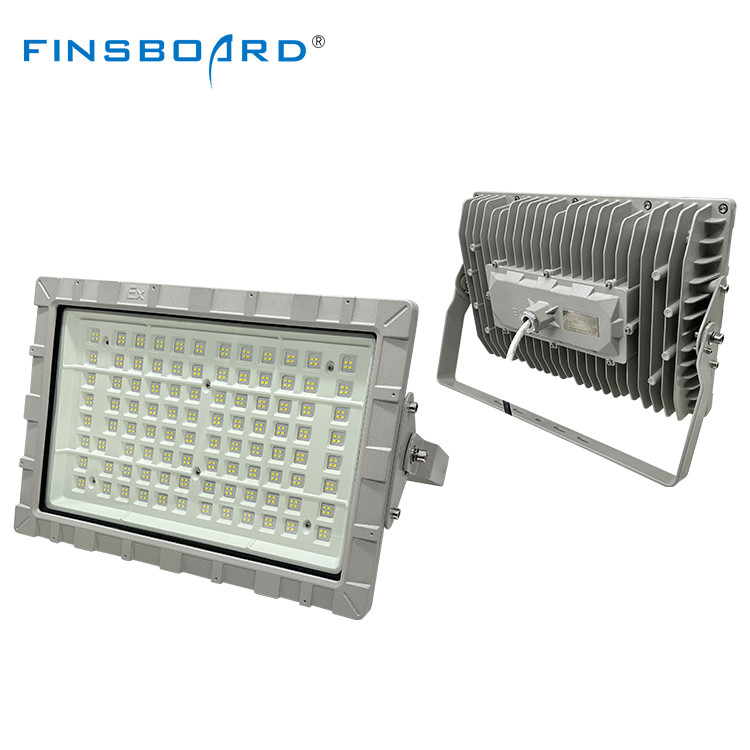

This LED mining lamp adopts an aluminum alloy die-cast shell, and the surface is treated with high-voltage electrostatic spraying. Stainless steel fasteners have excellent corrosion resistance. The high borosilicate tempered glass lens has a light transmittance of up to 90%, and has outstanding resistance to 4J high-energy impact and thermal fusion. Professional explosion-proof design ensures that it can work reliably in explosive gas environments.
The carefully designed optical system achieves high light efficiency and reasonable light distribution to ensure uniform lighting. The professional design of the internal protection structure ensures that it can still work normally in harsh environments.
Professional power supply system
Adopting professional constant current and constant voltage power supply design, it has wide voltage input, constant power output, and has safety protection functions such as overcurrent and open circuit protection. The power factor is as high as 0.98 or above, and the energy consumption performance is excellent.
This LED mining lamp can be equipped with an emergency power supply device, which automatically switches to emergency lighting when the main power is off.
This lamp is suitable for dry explosion environments in Zones 1 and 2, and combustible dust environments in Zones 21 and 22. It can be used in explosive gas environments of Class IIA, IIB and IIC, with temperature levels of T1~T6. It is widely used in hazardous places such as petroleum, chemical, electric power, military industry, and normal and emergency lighting in offshore oil platforms.
Product Model | RFEPL97 | ||
Explosion Proof Sign | Exde IICT6 Gb | ||
Rated Power | 50-70W | 80-150W | 150-240W |
Protection Level | IP65 | ||
Corrosion Protection Level | WF2 | ||
Inlet Thread | G3/4" | ||
Incoming Cable | φ7-12mm | ||
Work Environment | Temperature: -40~45 ℃ | ||
Power Factor | ≥0.95 | ||
Overall Dimensions | 250*170*150 | 320*225*220 | 460*310*230 |
Net Weight | 3.35kg | 6kg | 11.5kg |
Color Temperature | 2700-6500K | ||
Color Rendering Index | 80Ra | ||
Luminous Flux | 6500-31200lm | ||
Working Life | ≥50000H |
