120lm/w IP66 LED Stadium Lighting with 90° Lens Angle for Sports Arenas
Product Details:
| Place of Origin: | Chinese Mainland |
| Brand Name: | Fins board, BOCAQ |
| Certification: | CE,ROHS,FCC,PSE,CCC,UL,ISO9001,BSCI |
| Model Number: | RFFL-06 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box package+ bubble or as customized |
| Delivery Time: | 25-30days or confirm |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Led Chips: | Lumileds3030 | Dimmable: | Yes |
|---|---|---|---|
| Rated Power: | 6500w | Color: | Black |
| Lifetime: | 50,000 Hours | Keywords: | Commercial Exterior Flood Lights |
| Lens Angle: | 10°/20°/45°/90° | Guarantee: | 2/3/5years |
| Ip Grate: | IP66 | Material: | Aluminum |
| Working Temperature: | -40°C To 50°C | Luminous Efficiency: | 100-130lm/w |
| Highlight: | IP66 Grate LED Stadium Lighting,120lm/w LED Stadium Lighting |
||
Product Description

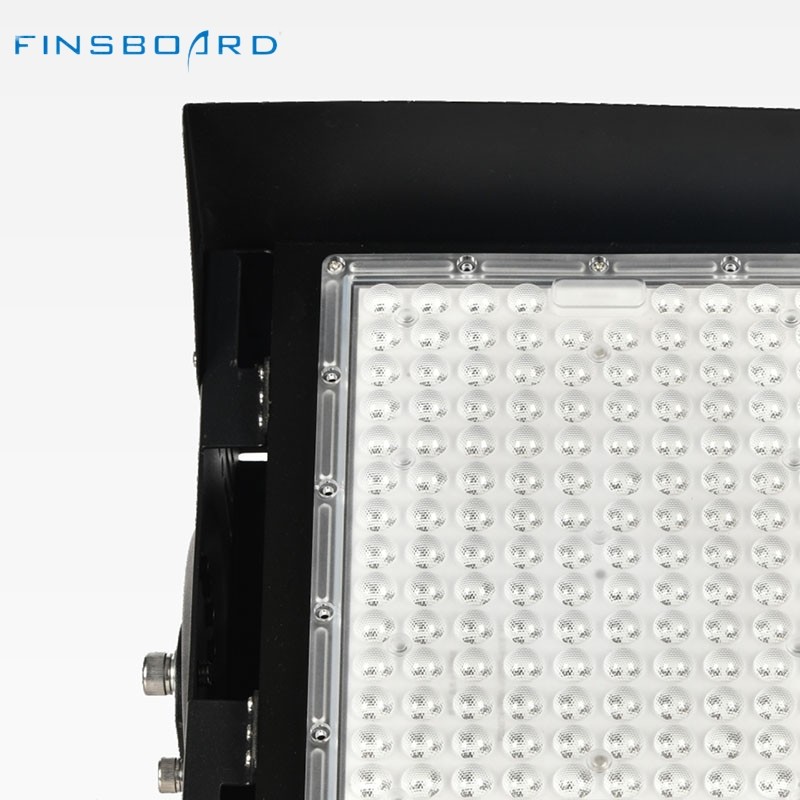

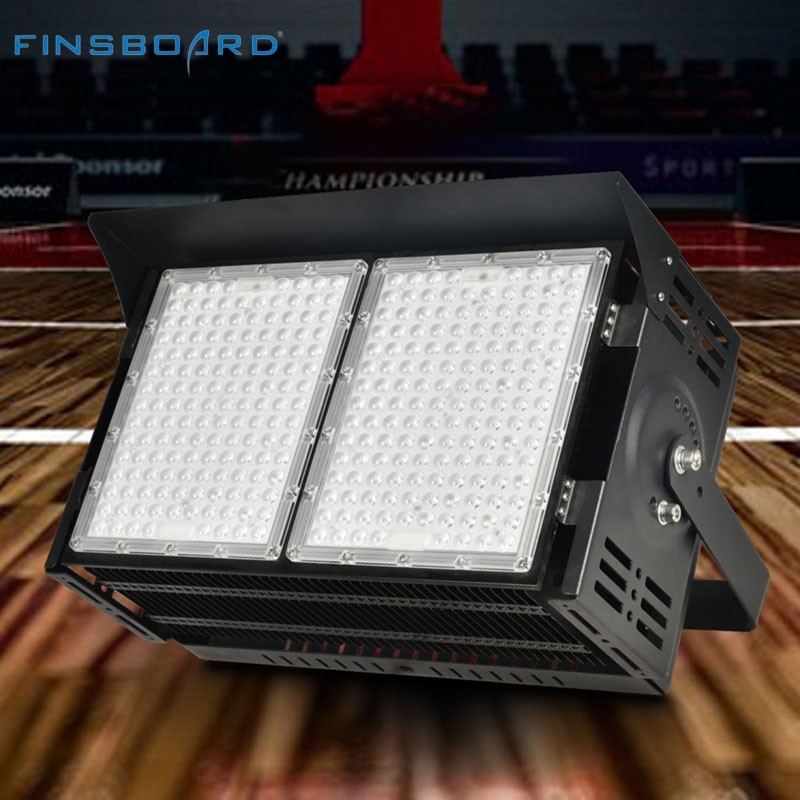

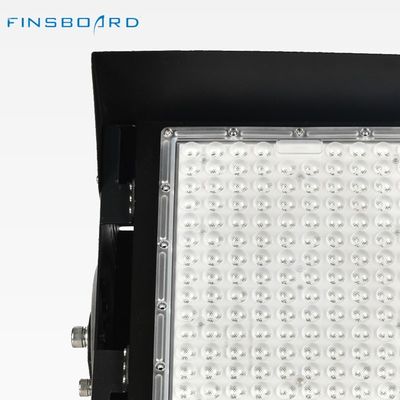

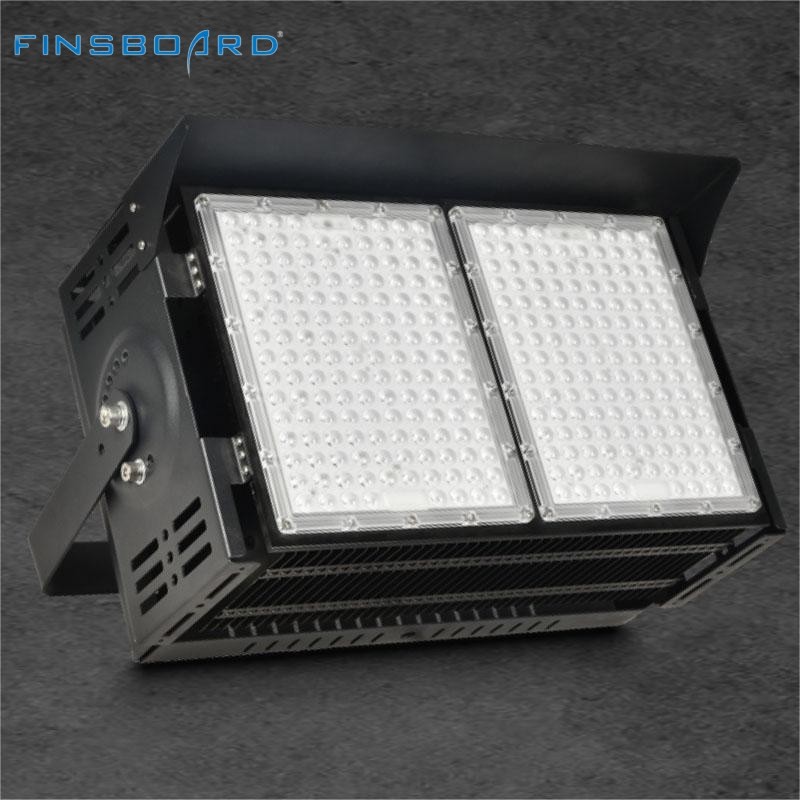

120lm/w IP66 Grate LED Stadium Lighting with 90° Lens Angle
In large sports stadiums, lighting system performance directly impacts the visual experience for athletes and spectators. As a leader in professional sports lighting, our IP66 protected LED stadium lamps are engineered with exceptional technical characteristics that meet the demanding requirements of modern sports venues.
IP66 LED stadium lamps integrate superior heat dissipation, excellent optical performance, and robust protection. With professional technical standards and comprehensive service support, these fixtures set the benchmark in sports lighting industry, delivering safer and more comfortable lighting experiences for large-scale sports events and commercial activities.
Advanced Heat Dissipation Design
These lamps feature aluminum alloy housing as a thermal conductive substrate. By rapidly dissipating generated heat, they effectively reduce LED chip temperature rise, ensuring long-term stable and reliable operation.
Premium Optical Performance
Utilizing high-transmittance PC material lenses, these lamps achieve exceptional optical output. The 90° beam angle design ensures uniform illumination coverage throughout the venue. The PC material also provides excellent yellowing resistance, maintaining lighting quality stability during extended use.
Flexible Customization Options
Available with 3-year or 5-year warranty options, these lamps can be customized to meet specific project requirements. Customization options include lighting angles, beam distribution patterns, and aesthetic design to accommodate diverse sports venue lighting needs.
Superior Protection Performance
Designed for outdoor high-power applications, the IP66-rated protection ensures reliable operation in harsh conditions. Whether facing heavy rain, snow, or dust exposure, these fixtures maintain consistent performance, creating safe and dependable lighting environments for sports facilities.
Technical Specifications
| Item No. | RFFL-06 |
|---|---|
| Power Options | 300W | 600W | 900W | 1200W |
| Material | Aluminum + PC (all models) |
| Dimensions | 285*280*205mm (300W) 490*280*205mm (600W) 735*280*205mm (900W) 575*490*205mm / 895*280*205mm (1200W) |
| LED Configuration | SMD3030 - 180pcs (300W) SMD3030 - 360pcs (600W) SMD3030 - 540pcs (900W) SMD3030 - 720pcs (1200W) |
| Driver | AC85-265V with 2-year warranty 3-year / 5-year options available - contact for details |
| Color Temperature | 2700-6500K |
| Efficiency | 100-130lm/w |
| CRI | Ra > 80 |
| IP Rating | IP65 |
