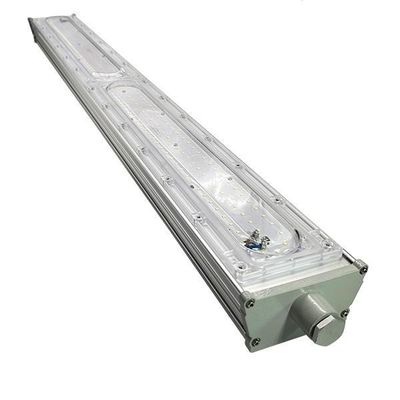

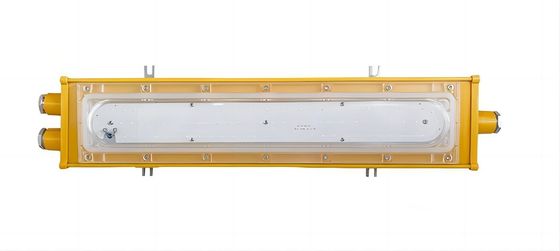

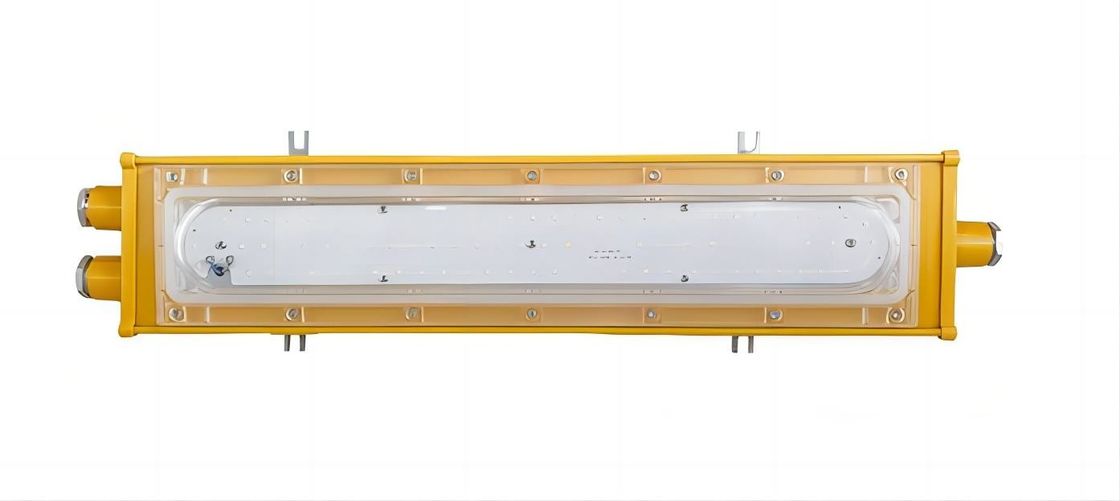

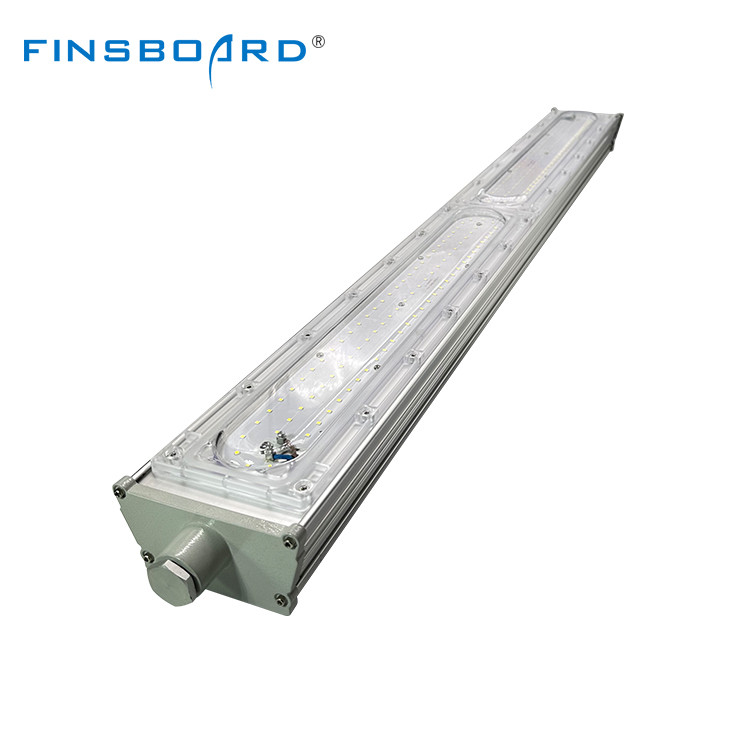

IP65 Waterproof SMD2835 LED Explosion Proof Linear Light with Exd IIC T6 Certification for Hazardous Areas
Product Details:
| Place of Origin: | Chinese Mainland |
| Brand Name: | Fins board, BOCAQ |
| Certification: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box package+ bubble or as customized |
| Delivery Time: | 10-15 days or confirm |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Name: | Industrial Explosion Proof Lighting | Keywords: | Hazardous Area Led Lighting |
|---|---|---|---|
| Standard: | Exd IIC T6-IP65-WF2 | Power: | 50w 100w 200w |
| LED: | SMD2835\SMD3030 | PF: | ≥0.95 |
| Light Efficiency.100-110lm/w: | 100-110lm/w | Voltage: | AC100-265V |
| CRI: | Ra80 | Usages: | Thermal / Oil Refinery / Power Plant / Chemical |
| Highlight: | Linear explosion proof stack light,Intrinsically Safe explosion proof stack light,Linear intrinsically safe lights explosion proof |
||
Product Description
Linear LED Explosion Proof Stack Light for Hazardous Areas
IP65 SMD2835 Linear LED Lighting for Hazardous Areas
This IP65-rated SMD2835 and SMD3030 linear LED lighting is specifically designed for hazardous areas, providing safe and reliable illumination in harsh industrial environments.
The hazardous area LED lighting features explosion-proof tempered glass construction to ensure high strength and reliability. These fixtures have passed rigorous impact and heat resistance testing to guarantee explosion-proof performance.
With an IP65 waterproof rating, these LED lights are safe for use in humid environments and can withstand demanding industrial conditions.
Available as OEM customized products, these explosion-proof flood lights can be tailored to meet specific customer requirements for different location lighting needs. The carefully engineered design ensures easy installation while delivering optimal lighting performance.
This industrial explosion-proof lighting provides efficient and reliable illumination in hazardous areas, excelling in both explosion-proof and waterproof capabilities. Suitable for various industrial environments including chemical plants, petroleum processing facilities, and marine applications, these lights deliver consistent, stable lighting performance to ensure workplace safety and operational efficiency.
Key Advantages
- Explosion-proof tempered glass construction
- IP65 waterproof rating for maximum protection
- OEM custom processing available for specific applications
- Simple design for easy installation
- Wide application range including chemical plants and petroleum facilities
- Long-lasting, stable lighting performance with reliable operation
Product Specifications
| Product Name | Explosion Proof Hazardous Area LED Lighting |
| Power | 50W-100W / 100W-200W |
| Model | BAD8411 50W 100W |
| Color Temperature | 5500-6500K |
| Material | Aluminum + Tempered Glass |
| LED Chip | SMD2835 |
| Luminous Efficiency | 100-110 lm/W |
| Voltage | AC100-265V |
| IP Grade | IP65 |
| Color Rendering Index (Ra) | 80 |
| Size | 670*133*66mm / 1240*133*66mm |
| Standard | Exd IIC T6-IP65-WF2 |
| Application | Hazardous Location Lighting, Chemical Industry, Gas Stations, Mines |
| Finish | Yellow/Grey |
| Place of Origin | Guangdong, China |
| Warranty | 5 Years |
Performance Features
| Waterproof Performance | Comprehensive resistance to water and dust |
| Outdoor Suitability | Yes |
| Weather Resistance | Strong, withstands wind and sun exposure |
| Heat Dissipation Technology | Die-cast fin heat dissipation |
| Heat Dissipation Material | High-conductivity aluminum substrate |
| Thermal Conductivity | Rapidly conducts heat from light source |
| Operating Temperature | Below conventional, efficient heat dissipation |
| Suitable Light Source Type | LED |
| Extended Lifespan | Effectively extends the lifespan of LED lights |
