500W IP65 Waterproof LED Modular Flood Light with Motion Detector for Outdoor Lighting
Product Details:
| Place of Origin: | Chinese Mainland |
| Brand Name: | Fins board, BOCAQ |
| Certification: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box package+ bubble or as customized |
| Delivery Time: | 10-15 days or confirm |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Material: | Aluminum | Beam Angle: | 120 Degrees |
|---|---|---|---|
| Driver: | AC100-270V | Ip Rating: | IP65 |
| CCT: | 3000-6500K | Guarantee: | 2 / 3 / 5 Years |
| Power Consumption: | 100W | Waterproof: | IP65 |
| Product Size: | 442*290*121552*441*121 | Power: | 200w |
| Lumen Efficiency: | 100lm/w Or As Customized | Chip: | 2835/3030 Lamp Bead |
| Warranty: | 2 Years | Lens: | PC Optical Lens |
| Highlight: | 240V LED Modular Flood Light,LED Modular Flood Light Motion Detector,500W motion detector flood light |
||
Product Description

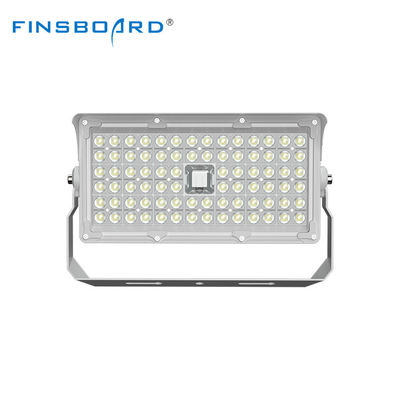

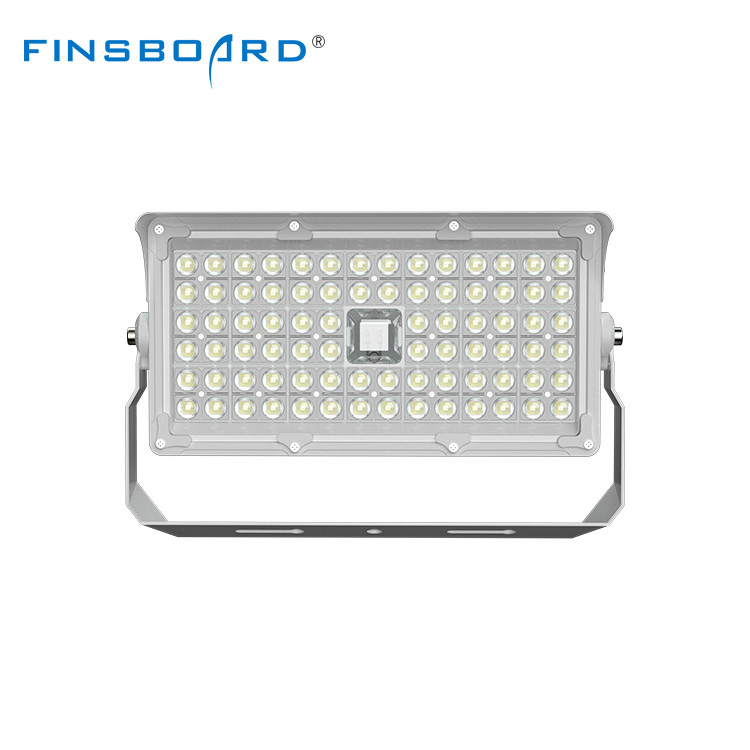

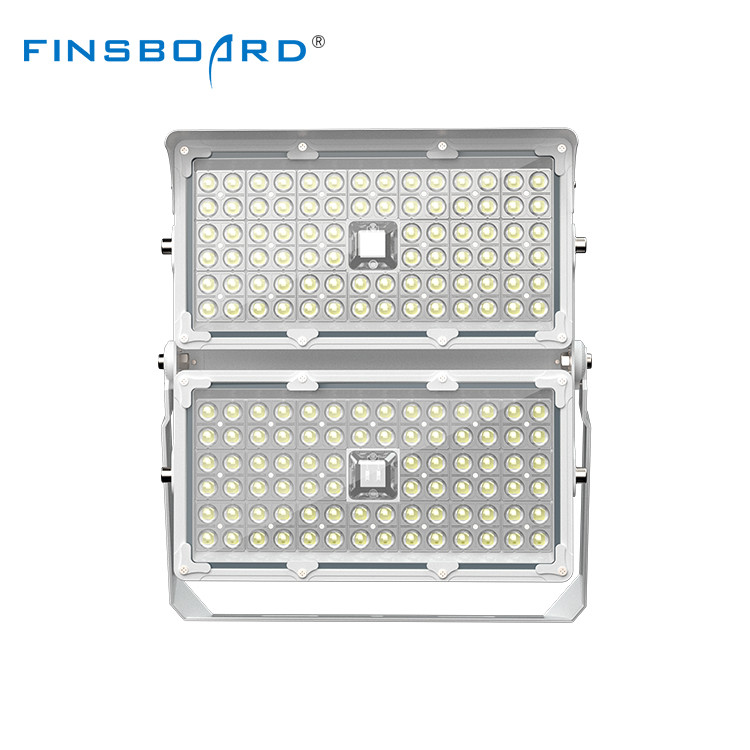

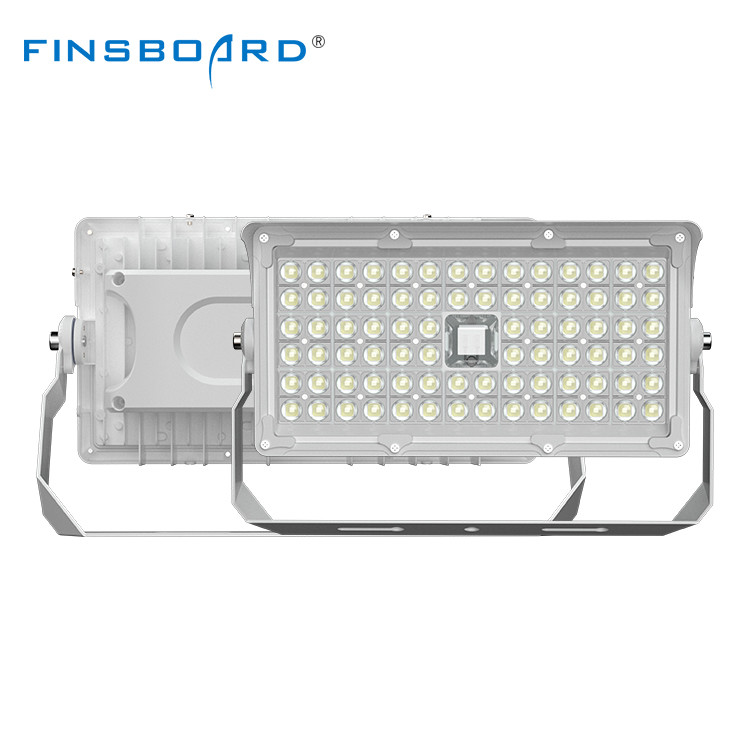

240V 500W LED Modular Flood Light with Motion Detector
Professional-grade modular LED flood light featuring motion detection, waterproof construction, and exceptional energy efficiency for demanding outdoor applications.
Key Features
- High-Efficiency Lighting: Delivers 150-155 lumens per watt with power options from 200W to 500W
- Energy Saving Design: Advanced LED technology reduces power consumption and maintenance frequency
- Weatherproof Construction: IP66 rated for reliable performance in harsh outdoor conditions
- Customizable Solutions: Multiple power configurations available to meet specific project requirements
- Safety & Reliability: Built to withstand adverse weather conditions with long-term operational stability
- Versatile Applications: Ideal for sports venues, parking lots, squares, and other outdoor areas
Technical Specifications
| Model | RFFL-16 |
|---|---|
| Power Range | 200-250W | 400-500W |
| Dimensions | 442*290*121mm | 552*441*121mm |
| Construction Material | Aluminum + PC |
| Driver | AC100-270V |
| Light Source | SMD2835/3030 |
| IP Rating | IP66 |
| Light Efficiency | 150-155 lm/W |
| Beam Angles | T1, T2, T3, 30°, 60°, 90° |
| Applications | Basketball Courts, Stadiums, Tunnels, Farms |
Premium Components
- MEANWELL/INVENTRONICS LED drivers for stable performance
- Die-cast aluminum heatsink with 96W/m·K thermal efficiency
- High thermal conductivity aluminum PCB for optimal LED cooling
- Durable iron mounting bracket
- Waterproof silicone sealing
- UV-resistant PC optical lens with precision lighting angles
- High-quality tempered glass protection
- Eaves design reduces uplight pollution and light scatter
