Description

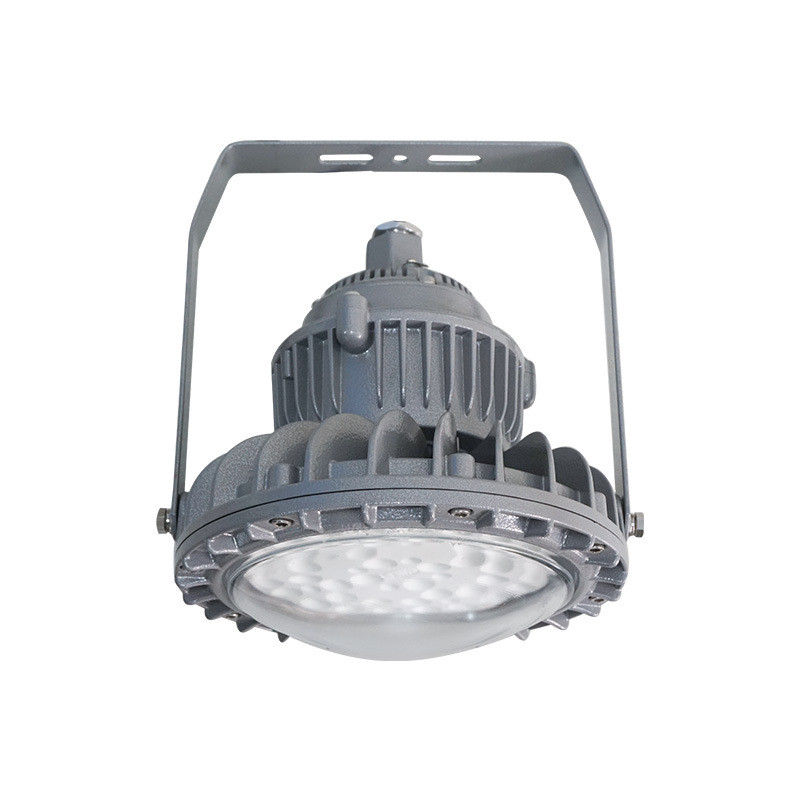

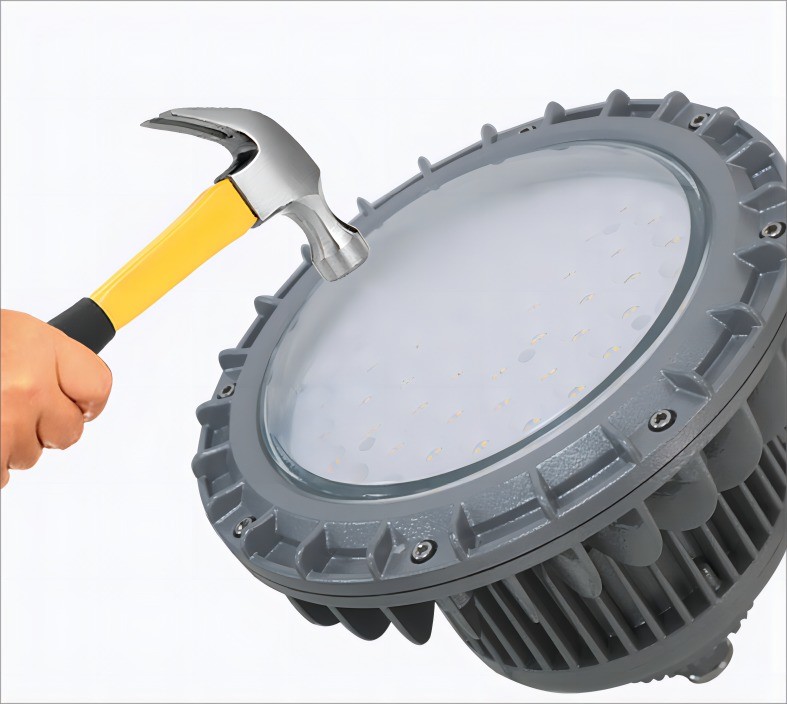

Class C explosion-proof construction is designed to provide superior explosion and impact protection. Its IP65 rating guarantees dust and water resistance, perfect for use in challenging environments. Reinforced with borosilicate blast-proof glass, the structure is specifically designed to withstand high pressure and high temperature conditions for durability and reliability. Its impact resistance allows it to withstand flying debris and other hazards, making it an excellent choice for hazardous environments. With its robust design and advanced features, this explosion proof construction provides a high level of protection for a wide range of industrial applications.
Application
Industries commonly used with Class C industrial explosion-proof LED lights include oil and gas, chemical processing, pharmaceuticals, mining, and food and beverage manufacturing. These lights can be installed in various areas of the factory, including production lines, storage areas and loading docks, to provide illumination in areas where flammable materials are present.
|
Model |
EL-01S |
EL-01M |
EL-01L |
|
Power |
50W 60W |
80W 100W |
120W 150W |
|
Voltage |
AC85-265V/50Hz |
||
|
Kelvin |
2700-6500K |
||
|
Explosion mark |
Ex de mb lIC T6 Gb |
||
|
IP Grade |
IP65 |
||
|
Size |
220x270mm |
260x285mm |
320x310mm |
|
Weight |
4.19kg |
5.29kg |
8.74kg |

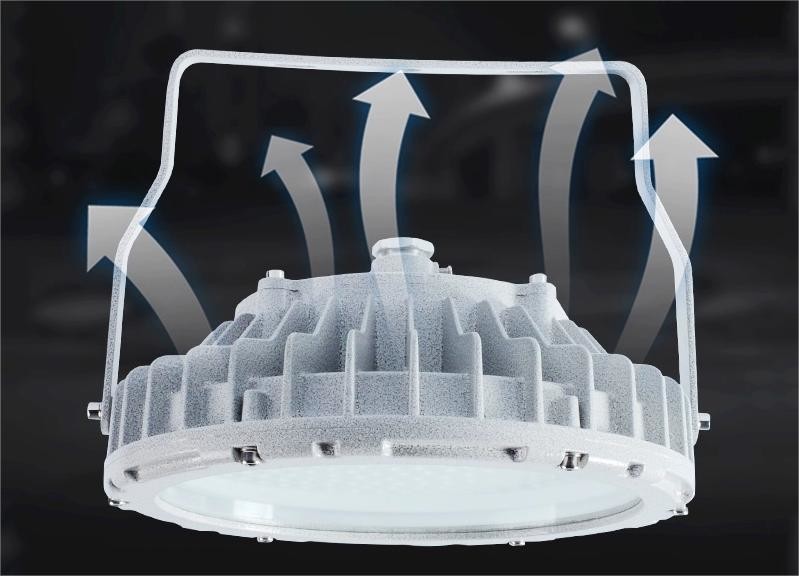

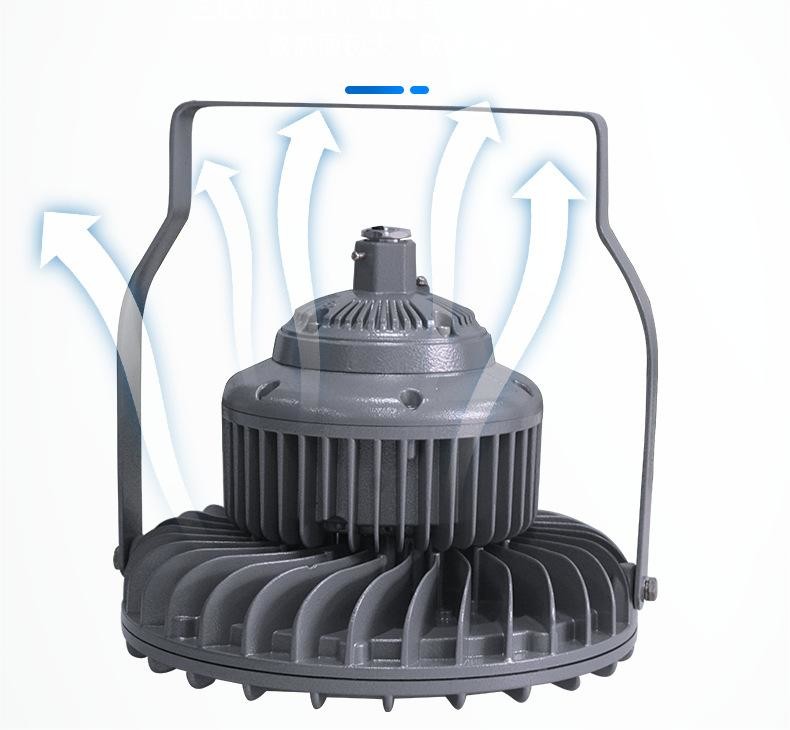

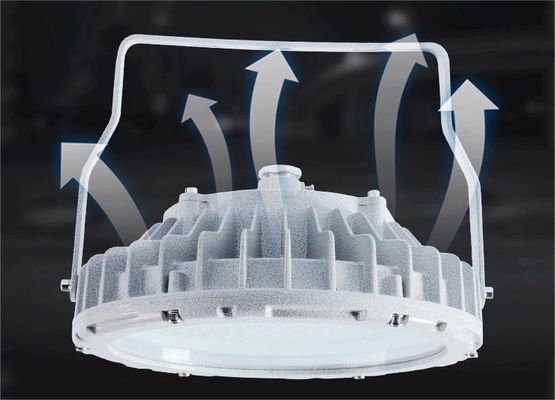

Die-cast aluminum heat dissipation, led lifetime will longer

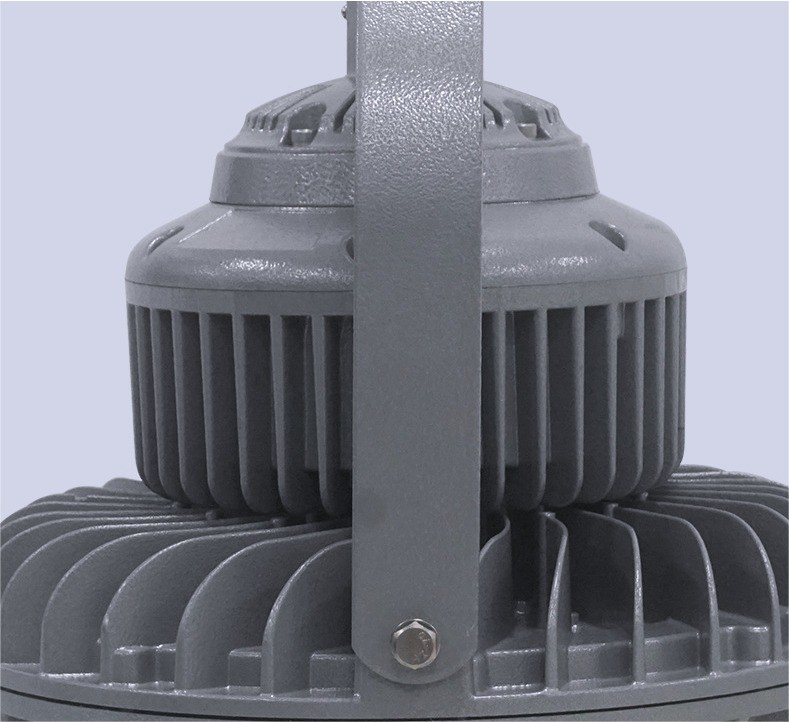

High-strength fixed bracket, adjust the angles easily
Application
