Name: 30w Ceiling Mounted Explosion Proof 2x4 Lighting Sight Glass Light
Brand: Finboard
SKU: Finboard
Rating: 5 (132 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Frequency: 50/60Hz

Voltage: AC 100-240V

Explosion-Proof Marking: Exd II CT6

Application: Hazardous Locations

Working Temperature: -40°C ~ 60°C

Light Efficiency: 100-120lm/w

Anti-corrosion Grade: WF2

Beam Angle: 120°

Power: 50W

Protection Level: IP66

Material: Aluminum Alloy

High Light:

30w explosion proof 2x4 lighting

Ceiling Mounted explosion proof 2x4 lighting

30w explosion proof sight glass light

Basic Infomation

Place of Origin: Chinese Mainland

Brand Name: Finboard

Certification: CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI

Payment & Shipping Terms

Packaging Details: Box package+ bubble or as customized

Delivery Time: 10-15 days or confirm

Payment Terms: T/T, Western Union

Supply Ability: 5000pcs/month

Gallery

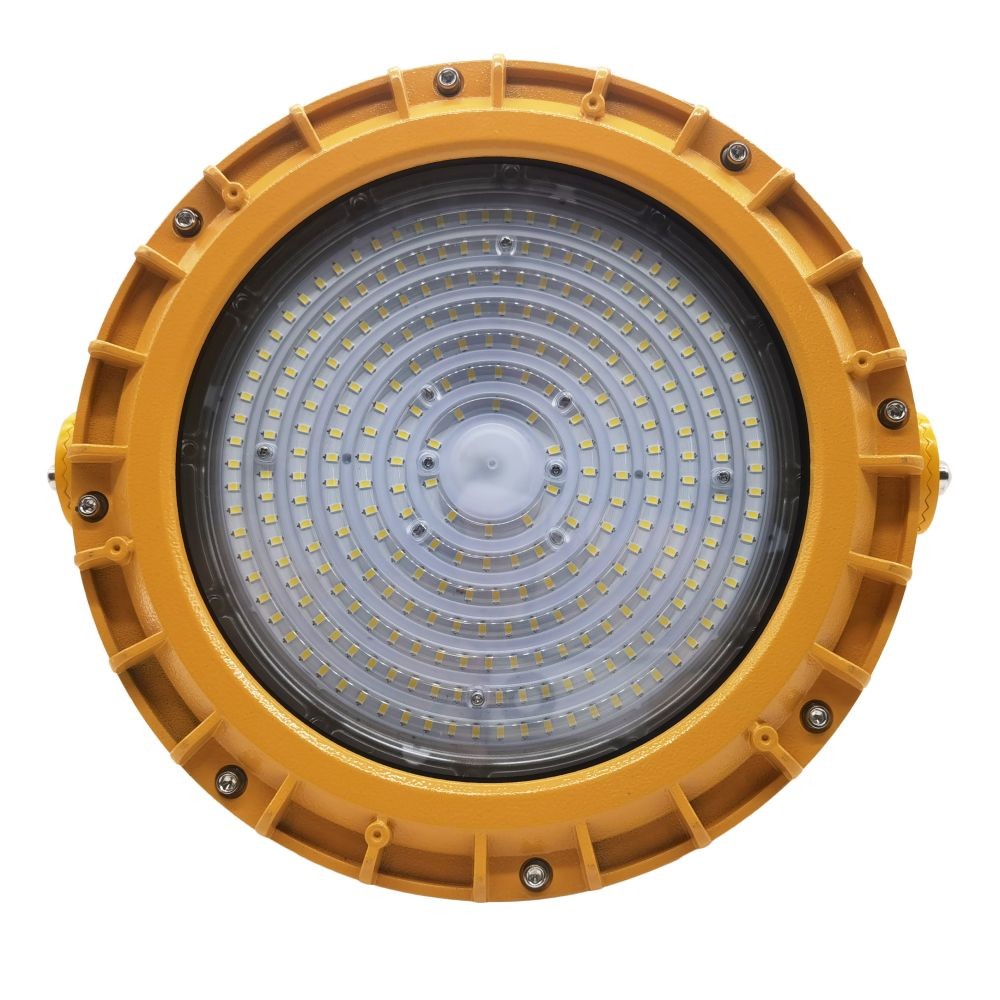

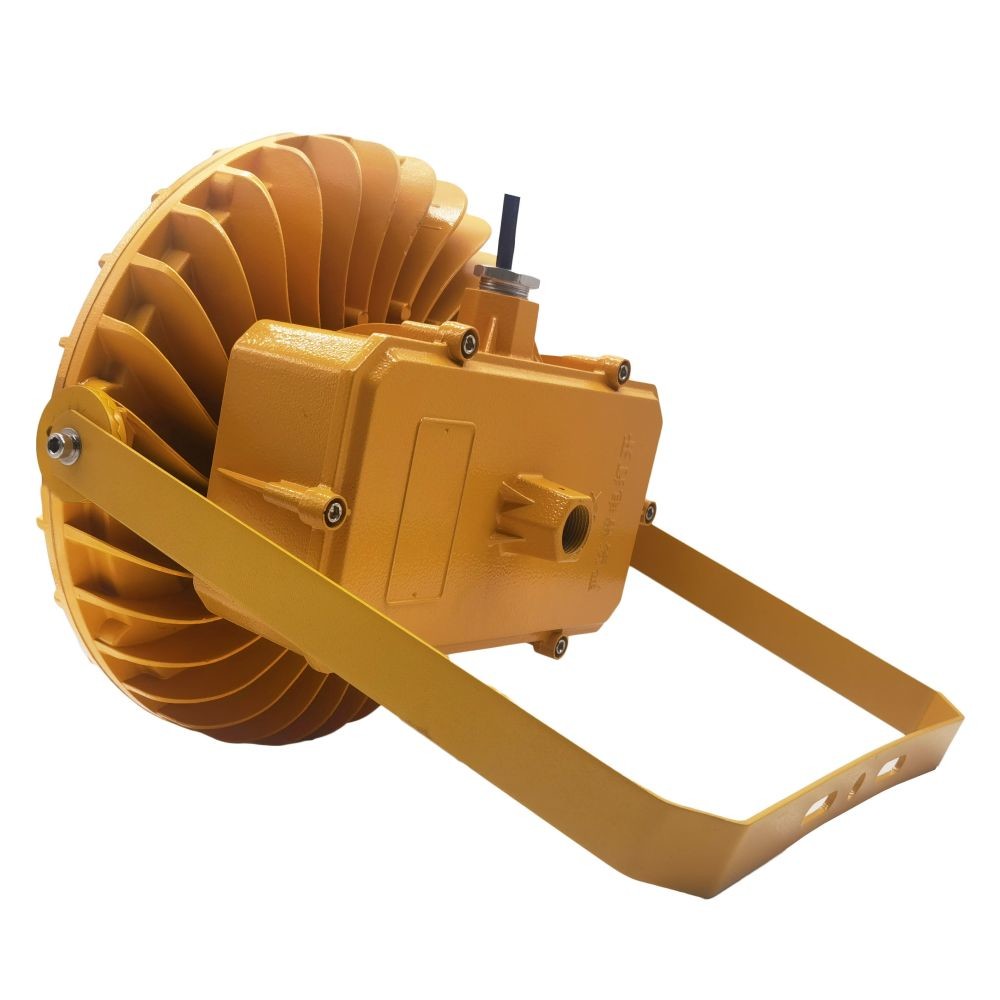

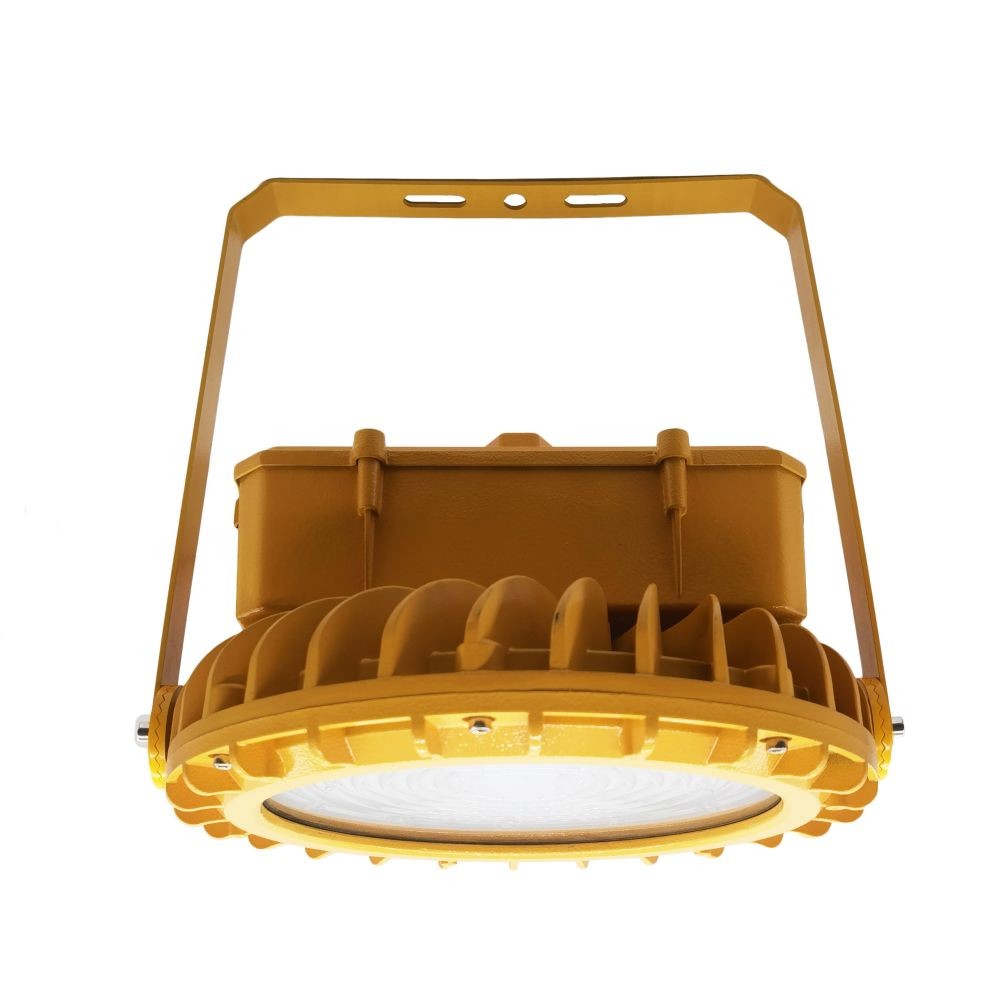

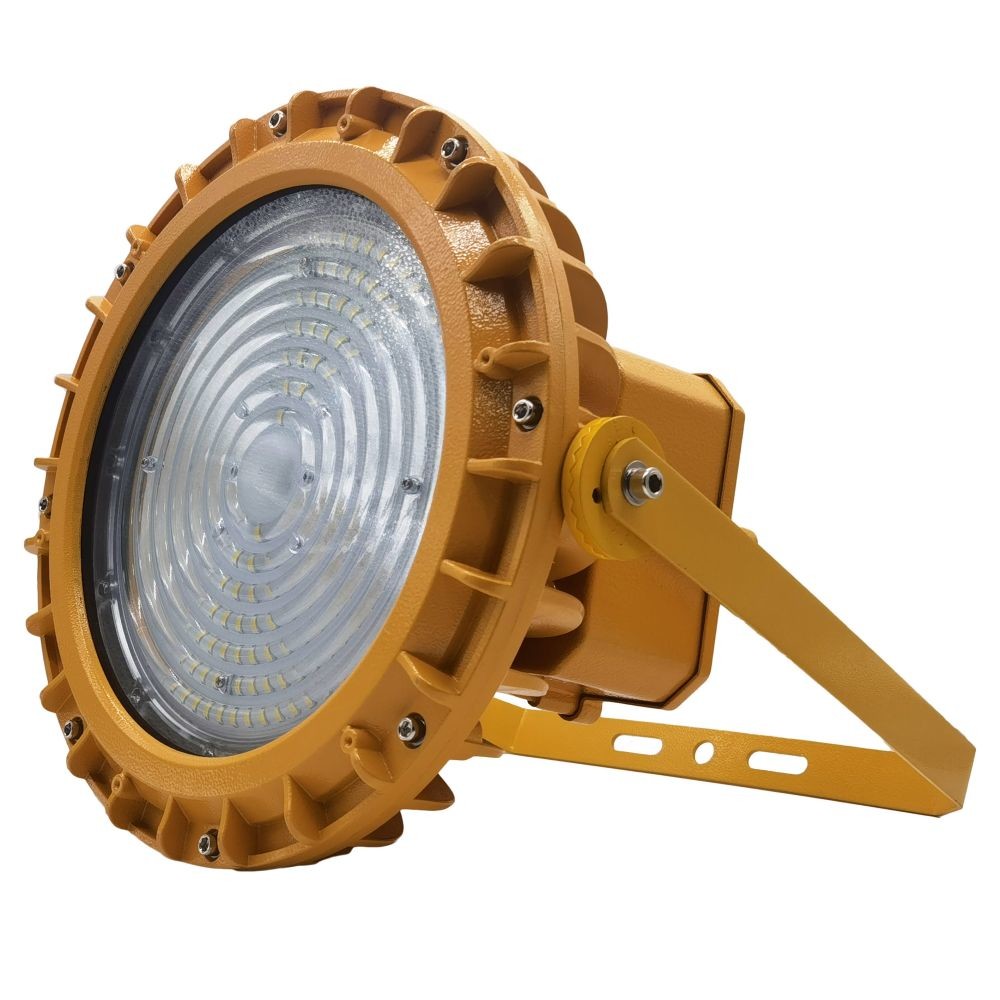

30w Ceiling Mounted Explosion Proof 2x4 Lighting Sight Glass Light

Product Description

Features:

Explosion Proof Enclosure: The luminaire is designed to contain any explosion that may occur inside, preventing it from igniting surrounding flammable materials.

High-Quality LED Chips: The light source uses high-quality LED chips, providing bright, efficient and long-lasting lighting.Corrosion Resistant Material: The lamp is made of corrosion resistant material, which can withstand harsh environments and resist corrosion.Wide voltage input: it can work in a wide voltage input range, suitable for various industrial environments.IP Rating: The light has a high IP rating, indicating its dust and water resistance.Energy Efficiency: Saves energy and helps reduce energy costs.Multiple Mounting Options: The lamp can be mounted in different ways, such as ceiling mount, wall mount or pole mount, to meet different installation requirements.Long Life: Long life with minimal maintenance and replacement costs.

Anti explosion light principle:

One of the very important explosion-proof principles of LED explosion-proof lamps is to limit the temperature of the shell surface, component surface or electronic component surface that is in contact with explosive gas and explosive dust, and limit the temperature of the electrical contact surface below its minimum ignition temperature or ignition temperature.

Normal working conditions of industrial explosion-proof lights:

1. The elevation of the installation site shall not exceed 2000m;

2. The ambient temperature is -40 ℃~+40 ℃, and the average temperature value within 24 hours does not exceed+35 ℃; The relative humidity of the surrounding air shall not exceed 95% (+25 ℃)

3. In a place without severe vibration, impact, and shaking;

4. Suitable for explosive gas environments in zones 1, 2, llA, llB, IIC, and T1 to T6;

Parameter Name	Value	Parameter Name	Value
Type Of Light Source	Led Light Source	Light source technology	SMD chips
Enclosure Rating	IP65	Shell anti-corrosion grade	WF2
Power Factor	≥0.95	Power Efficiency	≥0.88
Inlet Specification	G3/4”(φ6~ φ12mm)	Color temperature	5500K～6500K
Dimensions	φ205×115mm	Lamp Weight	2.8Kg
Recommended Installation Height	2m～5m	Recommended installation distance	2m～3m
Explosion-Proof Mark	Exde ⅡC T6 Gb/Ex tD A21 IP65 T80℃
Installation Method	Ceiling mounted (x), boom mounted (g), wall mounted (b30 °/b90 °), guardrail mounted (h), flange mounted (f)"
