Name: 6500lm-31200lm Explosion Proof Lighting Fixtures Fittings For Tunnel
Brand: Finboard
SKU: RFEPL97
Rating: 4.7 (136 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Keywords: Led Explosion Proof Light

Power Factor: ≥0.95

Incoming Cable: φ7-12mm

Protection Level: IP65/IP66

Color Temperature: 2700-6500K

Color Rendering Index: 80Ra

Corrosion Protection Level: WF2

Application: Ming \tunnel \gas Station

High Light:

6500lm Explosion Proof Lighting Fixtures

31200lm Explosion Proof Lighting Fixtures

6500lm explosion proof light fittings

Basic Infomation

Place of Origin: Chinese Mainland

Brand Name: Finboard

Certification: CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI

Model Number: RFEPL97

Payment & Shipping Terms

Packaging Details: Box package+ bubble or as customized

Delivery Time: 10-15 days or confirm

Payment Terms: T/T, Western Union

Supply Ability: 5000pcs/month

Gallery

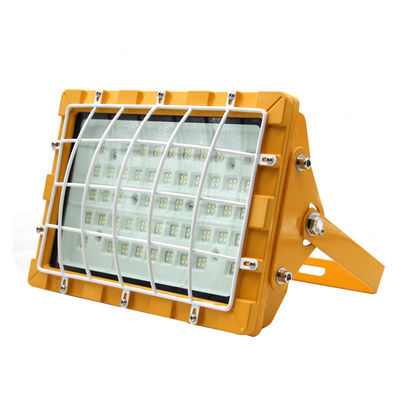

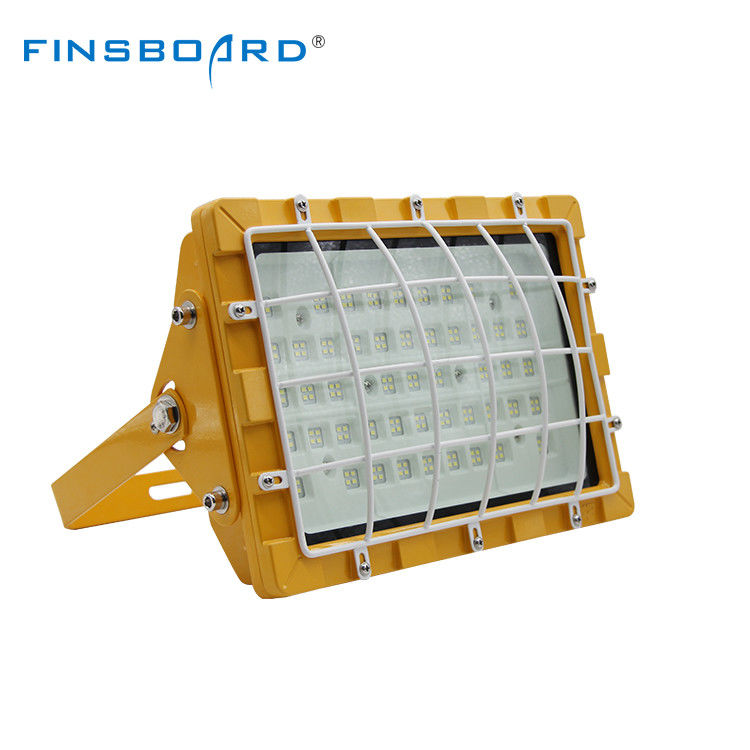

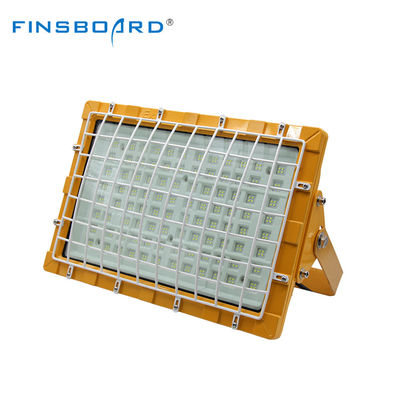

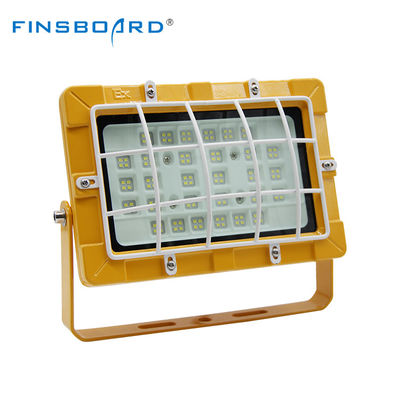

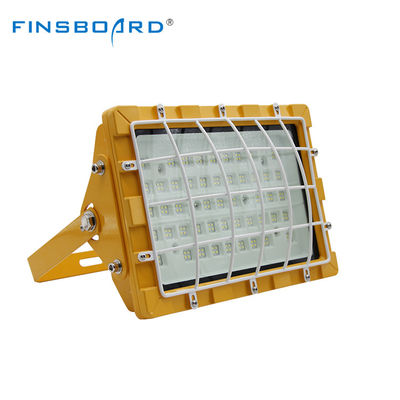

6500lm-31200lm Explosion Proof Lighting Fixtures Fittings For Tunnel

Product Description

Led Mine Explosion Proof Light IP65 2700k To 6500k

Product description

LED tunnel explosion-proof lights provide a safe and reliable lighting solution for hazardous environments. Using efficient LED technology, the LED tunnel explosion-proof lights provide bright and reliable lighting for places such as underground mines. They are usually constructed of strong and durable materials such as aluminum or stainless steel to withstand harsh environmental conditions and often have a high level of safety certification for use in explosive environments.

Features

The product is made up of several key components that work together to deliver high performance results. The structure of the explosion-proof lamp consists of an aluminum alloy die-casting shell, which is then painted with high-voltage electrostatic spraying for added durability. The fasteners used on the product are made of stainless steel, which is highly resistant to corrosion.

The LED explosion tunnel light adopts high borosilicate physical tempered glass transparent cover, and adopts fogging anti-glare design, which increases safety and comfort. It is capable of withstanding high-energy shocks of up to 4J, making it highly resistant to thermal fusion. The light transmittance of the cover is as high as 90%, providing bright and clear illumination.

It has the form of casing flameproof and thread flameproof, which improves its explosion-proof performance and reliability. It has a professionally designed light distribution system that ensures high light efficiency and uniform illumination. The internal protective structure is also professionally designed to ensure the normal operation of the product under harsh conditions.

It has a special constant current and constant voltage power supply with wide voltage input and constant power output. It also has functions such as constant current, open circuit protection and short circuit protection. Its high power factor, cos>0.98, ensures maximum energy efficiency.

Explosion proof lights can be equipped with emergency devices upon request. When the power is cut off, the indicator light will automatically switch to the emergency lighting state. The wiring system of this product is also made of steel pipe, which ensures a safe and reliable connection.

Product Model	RFEPL97
Explosion Proof Sign	Exde IICT6 Gb
Rated Power	50-70W	80-150W	150-240W
Protection Level	IP66
Corrosion Protection Level	WF2
Inlet Thread	G3/4"
Incoming Cable	φ7-12mm
Work Environment	Temperature: -40~45 ℃ Humidity: 10% -90%
Power Factor	≥0.95
Overall Dimensions	250170150	320225220	460310230
Net Weight	3.35kg	6kg	11.5kg
Color Temperature	2700-6500K
Color Rendering Index	80Ra
Luminous Flux	6500-31200lm
Working Life	≥50000H

6500lm-31200lm Explosion Proof Lighting Fixtures Fittings For Tunnel 0

6500lm-31200lm Explosion Proof Lighting Fixtures Fittings For Tunnel 5

6500lm-31200lm Explosion Proof Lighting Fixtures Fittings For Tunnel 6

6500lm-31200lm Explosion Proof Lighting Fixtures Fittings For Tunnel 8
