Led Mine Explosion Proof Light IP65 2700k To 6500k
Product description
LED mine explosion-proof light is a lighting fixture specially designed for use in hazardous environments, such as mines, where there is a risk of explosion due to the presence of flammable gases or dust. This type of light is designed to be intrinsically safe, which means it's constructed in such a way that it prevents sparks or other sources of ignition.
>>Product structure performance
◆Aluminum alloy die-casting shell, high-voltage electrostatic spraying on the surface;
◆Exposed stainless steel fasteners with high anti-corrosion performance;
◆High borosilicate physically tempered glass transparent cover, atomized anti-glare design, anti-4J high-energy impact, anti-thermal fusion, light transmittance as high as 90%;
◆Spigot flameproof and thread flameproof form, the explosion-proof performance is more reliable;
◆Professional designed light distribution system with high light efficiency, high utilization rate, reasonable light distribution and uniform illumination;
◆Professional design of the inner protection structure to ensure normal operation in harsh conditions;
◆Special constant current and constant voltage power supply, wide voltage input, constant power output, with constant current, open circuit protection, short circuit protection and other functions;
◆High power factor, cos > 0.98;
◆Emergency devices can be equipped according to requirements. When the power supply is cut off, the lamps will automatically switch to the emergency lighting state;
◆Steel pipe wiring.
>>Scope of application
1. Applicable to zone 1 and zone 2 of dry and explosive gas environment; suitable to zone 21 and zone 22 of combustible dust environment;
2. Suitable for explosive gas atmospheres of ⅡIA, ll B, and IC; suitable for environments with temperature grades T1~T6;
3. Industrial flameproof light is widely used in oil exploration, oil refining, chemical industry, storage, electric power, military industry and other dangerous environments, as well as normal lighting and emergency lighting on offshore oil platforms.
|
Product Model
|
RFEPL97
|
|
Explosion Proof Sign
|
Exde IICT6 Gb
|
|

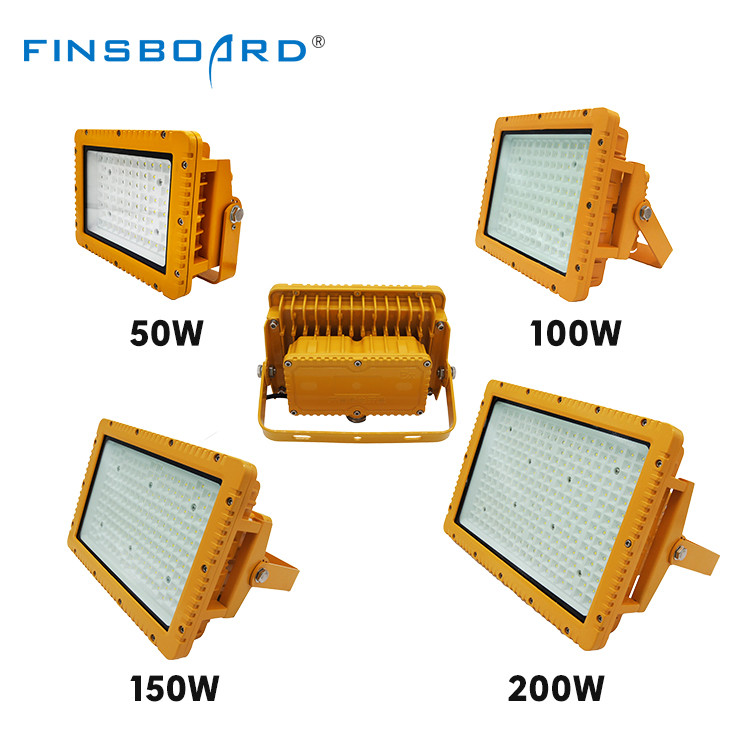

Rated Power
|
50-70W
|
80-150W
|
150-240W
|
|
Protection Level
|
IP65
|
|
Corrosion Protection Level
|
WF2
|
|
Inlet Thread
|
G3/4"
|
|
Incoming Cable
|
φ7-12mm
|
|
Work Environment
|
Temperature: -40~45 ℃
Humidity: 10% -90%
|
|
Power Factor
|
≥0.95
|
|
Overall Dimensions
|
250*170*150
|
320*225*220
|
460*310*230
|
|
Net Weight
|
3.35kg
|
6kg
|
11.5kg
|
|
Color Temperature
|
2700-6500K
|
|
Color Rendering Index
|
80Ra
|
|
Luminous Flux
|
6500-31200lm
|
|
Working Life
|
≥50000H
|
