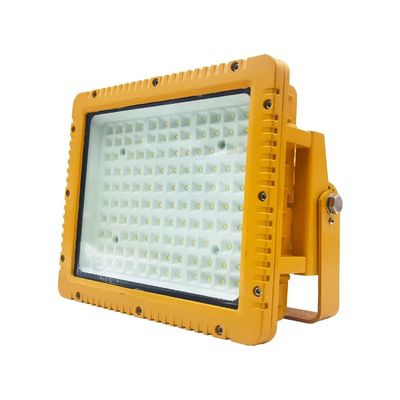

OEM Hazardous Explosion Proof Lighting Fixtures Wall Mount Flood Light
Product Details:
| Place of Origin: | Chinese Mainland |
| Brand Name: | Finboard |
| Certification: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| Model Number: | RF-98 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box package+ bubble or as customized |
| Delivery Time: | 10-15 days or confirm |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Product Name: | Explosion Proof Flood Light | Led: | SMD 3030/2835 |
|---|---|---|---|
| Light Efficiency: | 100-120lm/w | Material: | Aluminum+ Glass |
| Voltage: | AC85-265V | Guarantee: | 3/5 Years |
| Explosion-proof Signs: | Exde ⅡC T6 Gb/Ex TD A21 IP65 T80℃ | Waterproof: | IP65 |
| Anti-corrosion Grade: | WF2 | Beam Angle: | 120° |
| Highlight: | Explosion Proof Lighting Fixtures Floodlight,Wall Mount Explosion Proof Lighting Fixtures,Wall Mount hazardous lighting |
||
Product Description
Chemical Industry Lab Atex Explosion Proof Led Wall Moun Flood Light
Products Description
Features
1. Explosion proof led light thick die-cast aluminium housing for superior thermal performance.
2. Explosion proof led flood light LUMILEDS brand lamp chips, high brightness and long service life.
3. Atex explosion proof light toughened glass with an impact resistance rating of IK08 for greater safety when use it.
4. Explosion proof led wall mount flood light with thicker fixing brackets for more secure mounting of the luminaire.
5. All screws of explosion proof flood light are made of stainless steel to prevent rusting and ageing, which could lead to safety hazards.
6. The internal led power supply uses a constant current and constant voltage power supply for long life and good stability.
Application
This explosion proof flood light is designed to provide fixed lighting in hazardous environments like chemical plants, warehouses, power plants, paint workshops, boiler rooms, petrol stations, fuel stations, gas stations, and tank farms, where explosion-proof lighting is necessary.
Principle
One of the very important explosion-proof principles of LED explosion-proof lamps is to limit the temperature of the shell surface, component surface, or electronic component surface that comes into contact with explosive gases and dust, as well as to limit the temperature of the electrical contact surface to be lower than its minimum ignition temperature or ignition temperature.
Installation way
Ceiling-mounted, boom-mounted, wall-mounted, parapet-mounted, bent-pole-mounted and other installation options are available.
