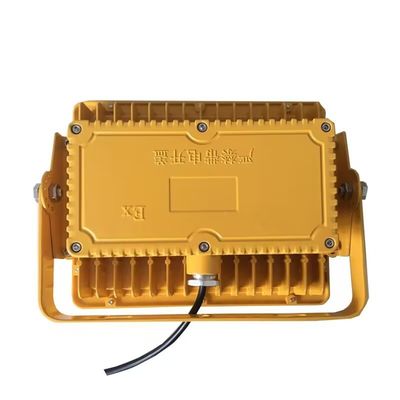

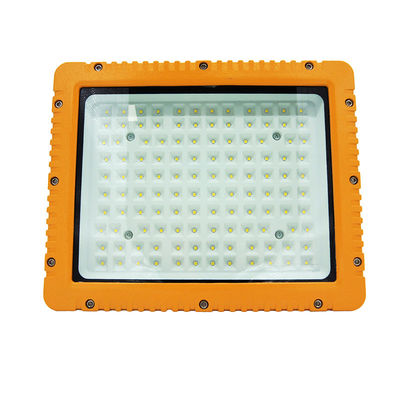

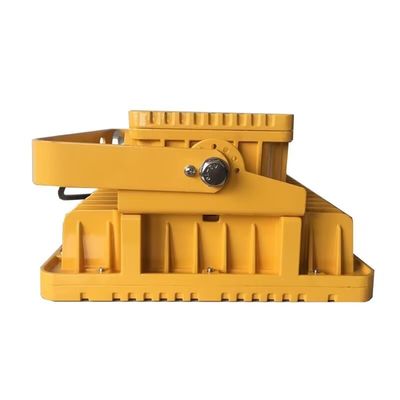

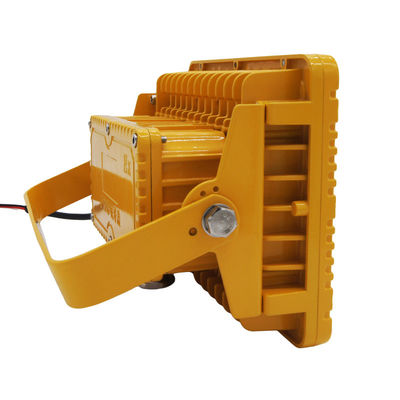

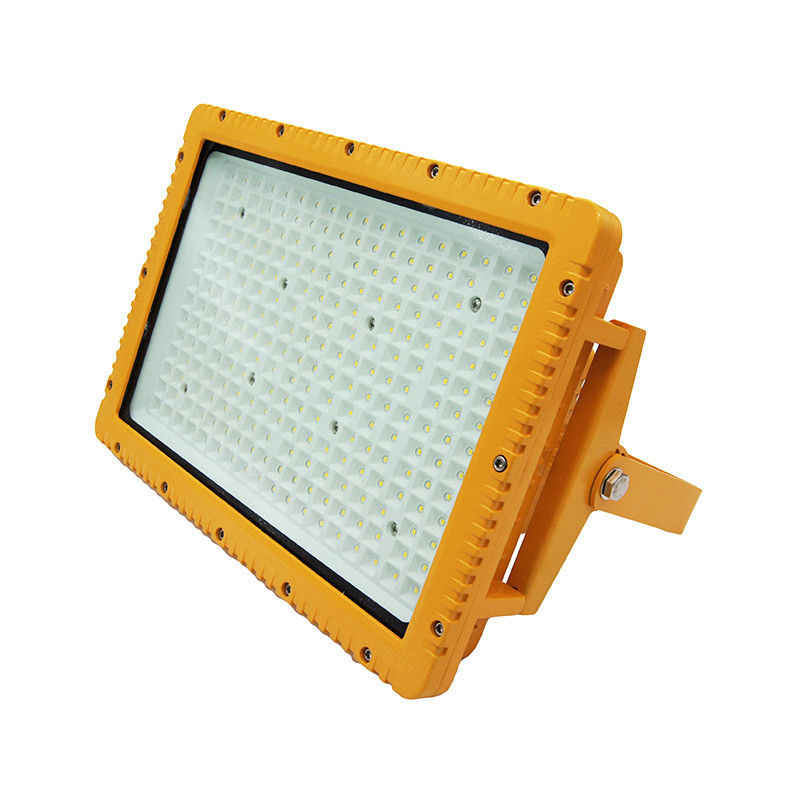

High Bay Hazardous Location Light Fixture Explosion Proof 180W
Product Details:
| Place of Origin: | Chinese Mainland |
| Brand Name: | Finboard |
| Certification: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box package+ bubble or as customized |
| Delivery Time: | 10-15 days or confirm |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Hazardous Location Class: | Class I, Division 1 | Light Efficiency: | 6500-31200lm |
|---|---|---|---|
| Light Source: | LED | Power: | 100W |
| Operating Temperature: | -40°C To 60°C | Explosion-proof Signs: | Exde ⅡC T6 Gb/Ex TD A21 IP65 T80℃ |
| Material: | Aluminum Alloy | Voltage: | 120-277V |
| Anti-corrosion Grade: | WF2 | Ingress Protection Rating: | IP66 |
| Product Name: | Explosion Proof High Bay LED Light | Lifetime: | 50,000 Hours |
| Highlight: | High Bay hazardous location light fixture,180W hazardous location light fixture,180W explosion proof high bay light fixture |
||
Product Description
Oil Refining Plant Explosion Proof High Bay LED Light IP65
Features

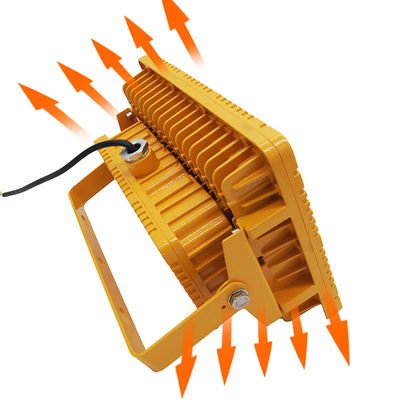

High light efficiency: The flood light explosion proof lamp adopts a professional light distribution system, which has high light efficiency, high utilization rate, reasonable light distribution and uniform illumination, and can provide bright and comfortable lighting effects.
Durability: The explosion proof floodlight is made of high-strength aluminum alloy, and the surface is treated with corrosion resistance, which has good shock resistance, corrosion resistance and waterproof performance, and is suitable for industrial environments.
High performance: flame proof flood light adopts toughened glass, high strength, passed strict impact test and heat resistance test, and has reliable explosion-proof performance.
Various installation methods: various installation methods such as ceiling type, suspension rod type, wall-mounted type, guardrail type, and bent rod type can be used.
Customized hardware accessories: We can customize hardware accessories of different materials, specifications and shapes according to the needs of customers, so as to adapt to different installation environments and needs.
Product Number | BAD98 | |||
Explosion-Proof Mark | Exde IICT6 Gb | |||
Rated Power | 50-70W | 80-120W | 120-180W | 180-240W |
Degree Of Protection | IP65 | |||
Anti-Corrosion Grade | WF2 | |||
Inlet Thread | G3/4" | |||
Incoming Cable | φ7-12mm | |||
Working Environment | Temperature: -40~45 ℃ Humidity: 10% -90% | |||
Power Factor | ≥0.95 | |||
Dimensions | 250*200*120 | 300*240*135 | 350*245*135 | 400*280*135 |
Net Weight | 3.83kg | 6.28kg | 7.56kg | 9.2kg |
Color Temperature | 2700-6500K | |||
Color Rendering Index | 80Ra | |||
Luminous Flux | 6500-31200lm | |||
Life Span | ≥50000H | |||
